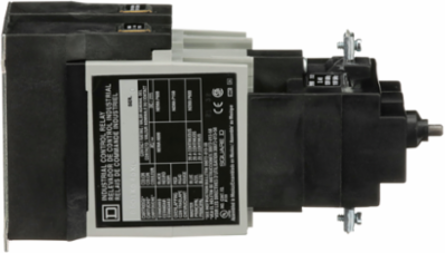

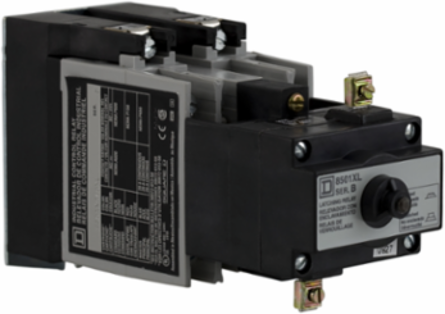

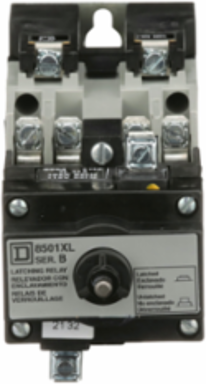

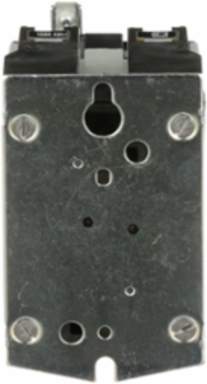

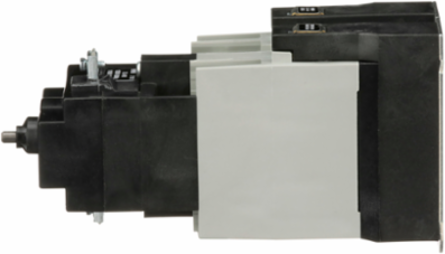

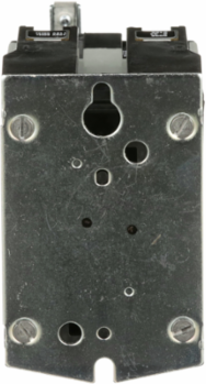

Square D 8501XO40XLV02 NEMA Control Relay, Latching, 10A, 600V AC, 4 NO Contacts, 110/120V AC
- MPN: 8501XO40XLV02
- UPC: 785901028505
- PPN: SCH-8501XO40XLV02
CAD
$462.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay has a mechanical latch attachment which holds all contacts switched even after removal of power from the replaceable latching coil. This relay provides sequence memory in the event of power loss. This relay is ideal for press control, process control and punch press applications. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 110/120 VAC 50/60 VAC replaceable latching coil. Relay has a continuously rated 110/120 VAC 50/60 VAC replaceable unlatching coil, which means no coil clearing contacts are required. Relay is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth6.54 in
Complementary Attributes
- Line Rated Current
- 10 A AC5 A DC
Maximum Switching Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CE, CSA, UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.3492728005372734
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 8.228026057756884
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Electrical Connection
- screw clamp terminals
- Number Of Poles
- 4P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- 8501X
- Returnability
- No
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP1310013EN
- Pep Verification Date
- 2024-06-02
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; MX
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 70
- Width Nominal
- 2.23 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.1749643922095366, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.34148204163868373, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]169 kg CO2 eq., 168.55882352941177
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Contacts Type And Composition4 NO 4 standard contact cartridges
Mounting Supportpanel
Operating Time15 ms - pick-up13 ms - drop-out
Product Or Component Typerelay
Relay Typelatching
Software Versionv5.9.4
Total Lifecycle Carbon Footprint180 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh315.36
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal3.50 in
[Uc] Control Circuit Voltage110 V AC 50 Hz120 V AC 60 Hz
Package Weight(Lbs)1.338 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint179.65256882155415
Environmental DisclosureENVPEP1310013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
