Schneider Electric M9R12225 Multi9 GFP Residual Current Circuit Breaker 2P 25A 86mA IP20
- MPN: M9R12225
- PPN: SCH-M9R12225
CAD
$624.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

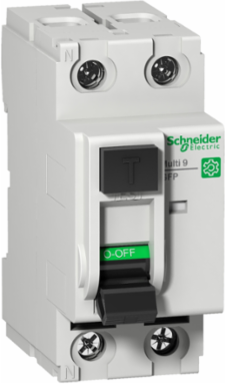

This product is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, a sensitivity of 86mA with a A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Depth60 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 25 A 40 °C EN/IEC 61008-1
Rated Breaking And Making CapacityIdm 1500 A EN/IEC 61008-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- IEC, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0377440371673973, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0169079157064469
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 15 kg CO2 eq., 15.0798148148148
- Local Publishable Date
- 2026-07-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 0627
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Connection Pitch
- 18 mm between phases
- Control Type
- toggle
- Device Short Name
- GFP
- Energy Efficiency Optimized
- False
- Locking Options Description
- padlocking in OFF position
- Mounting Mode
- clip-on
- Network Frequency
- 50/60 Hz
- Neutral Position
- left
- Power Losses Per Pole
- 1.4 W
- Product Name
- Multi9 GFP
- Range
- Multi9
- Residual Current Tripping Technology
- voltage independent
- Software Version
- v5.9.4
- Tightening Torque
- 3.5-3.5 N.m top or bottom
- Total Power Losses
- 2.8 W
- Utilisation Category
- AC-23A EN/IEC 61008-1
- Rated Current 3
- 25 A
- Pep Code
- ENVPEP2301023EN
- Pep Verification Date
- 2025-04-20
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2018; Spain, SP
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 59
- Width Nominal
- 36 mm
- [Ui] Rated Insulation Voltage
- 440 V AC 50/60 Hz
- Earth-leakage Sensitivity
- 86 mA UL 1053100 mA EN/IEC 61008-1
- Earth-leakage Protection Class
- type A-SI (Super Immunised)
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 213.000 g
- Warranty (In Months)
- 18
- Tsca Regulation
- Does not contain Section 6H Chemical
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalstunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexibletunnel type terminals (top or bottom)1-35 mm² (18 AWG...2 AWG) - rigid, tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexible with ferrule
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.704341861055052, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.74919424428201
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Contact Position Indicatoryes
Device Applicationdistribution
Electromagnetic Compatibility8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
Local SignallingON, OFF, fault trip
Mechanical Durability20000 cycles
Mounting SupportDIN rail
Network TypeAC
Number Of Poles2P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeresidual current circuit breaker (RCCB)
Range Of ProductMulti9
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Tropicalisation2 IEC 60068-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Earth Leakage Sensitivity 1100 mA
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 400V and rated current 40A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 4& 10- Sensitivity 300mA& 10- Type of differential protection AC
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh36.792
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal81 mm
[Ue] Rated Operational Voltage120/240 V AC 60 Hz240 V AC 50 Hz
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 61008-1
Rated Conditional Short-circuit CurrentInc 10 kA 100 A gG
Earth-leakage Protection Time Delayinstantaneous
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200040
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Carbon Footprint
- 18.5880028730257
- Ambient Air Temperature For Operation
- -25-60 °C-25-60 °C
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 55-55 °C
- Pep Verification Date
- 2025-04-20
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 Mm Pitches4
Environmental DisclosureENVPEP2301023EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2301023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- residual current circuit breaker (RCCB)
Range Of ProductMulti9
ETIM
- ETIM 8
- EC000003
ETIM 9EC000003
