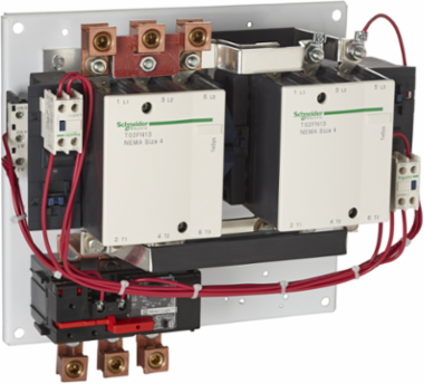

Square D T36FN23G7 TeSys N Motor Starter 135A 100hp 575VAC NEMA Size 4
Square D T36FN23G7 TeSys N Motor Starter 135A 100hp 575VAC NEMA Size 4
- MPN: T36FN23G7
- PPN: SCH-T36FN23G7
- UNSPSC: 39121521
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Designed for robust performance in industrial applications, the TeSys N motor starter from Schneider Electric offers exceptional control for your machinery. With a rated power capacity of up to 100 horsepower at 575VAC and a line rated current of 135A, this reversing starter is built to handle demanding operational environments. It features a solid-state thermal overload protection with a Motor Logic class rating of 10/20, ensuring reliable and efficient motor management. This versatile device operates on a common control circuit and is suitable for three-phase systems, making it an ideal choice for a variety of automation and control applications.
Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- Ideal for use in construction, industrial markets, building automation
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA
Complementary Attributes
- Rated Power In HP
- 40 HP 200 V AC, 50 HP 230 V AC, 100 HP 460 V AC, 100 HP 575 V AC
- Line Rated Current
- 135 A
Control Circuitcommon control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Electrical Connection
- lugs ordered separately
- Package Weight Lbs
- 13.608 kg
- Poles Description
- 3P
- Product Or Component Type
- starter
- Returnability
- No
- Thermal Overload Type
- solid state Motor Logic class 10/20 45-135 A
- Ue Rated Operational Voltage2
- 600 V AC
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
- Ue Rated Operational Voltage5
- 600 V AC
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2026-02-13
Scope PerimeterOutside of Europe
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Control Circuitcommon control circuit
Motor Starter Typereversing
Phase3 phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductTeSys N
Sustainable PackagingNo
Uc Control Circuit Voltage2120 V AC
Medium DescStarter, TeSys N, 135A, 1NO, 100HP at 575VAC, NEMA size 4
Product Kit IdentifierN
Uc Control Circuit Voltage5120 V AC
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Nema Degree Of Protection
- not rated (open device)
- Packaging Made With Recycled Cardboard
- No
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Mercury FreeYes
Nema Size4
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- 3 phase
- Range Of Product
- TeSys N
Product Or Component Typestarter
