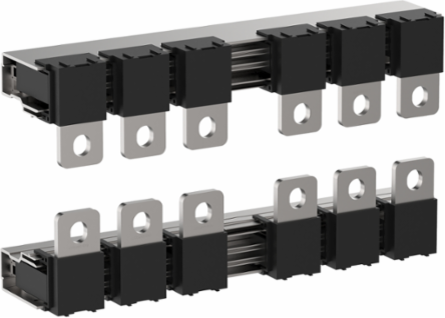

Schneider Electric LA9G3761 TeSys Giga Reverser Connection Bar for LC1G265-500, 3 Poles, 500 A

MPN: LA9G3761
PPN: SCH-LA9G3761

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1564.66/ EA

Qty:

Loading add to cart quantity...

Description

These accessories are reverser bars for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Accessory / Separate Part Category: connection accessory

Range: TeSys

Electrical Circuit Type: reversing

Product Or Component Typeset of connections

Quantity Per Setset of 1

Device Short NameLA9G

Environment

Ambient Air Temperature For Operation: -40-60 °C

Product Certifications: ABS || BV || CB || CCC || CCS || cUL || CE || DNV-GL || EAC || KC || LROS (Lloyds register of shipping) || RCM || RINA || RMRoS

Ip Degree Of Protection: IP20 IEC 60529

StandardsEN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4

Ambient Air Temperature For Storage-60-80 °C

Operating Altitude3000 m without derating || 5000 m with derating factor

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2105013

Pvc Free: Yes

China Rohs Regulation: X

Eu Rohs Directive: Compliant with Exemptions

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2105013

Halogen Content PerformanceHalogen free plastic parts product

Complementary

Height: 65 mm

Net Weight: 2.0 kg

Width: 74 mm

Product Compatibility: LC1G265...500 || LC1G300...475

Range CompatibilityTeSys Giga

Poles Description3P

Depth298 mm
