Dragon Tooth

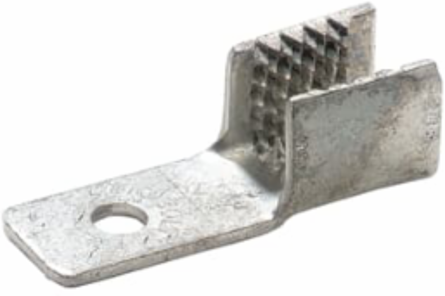

Dragon Tooth 22R086 RING TERM CU 16-12 AWG NO8 STUD

RING TERM CU 16-12 AWG NO8 STUD
  • MPN: 22R086
  • UPC: 786210889986
  • PPN: T-B-22R086
  • UNSPSC: 39121432

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.69/ EA

Description

Insulation Piercing Magnet Wire Ring Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 8, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated

Specifications

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals

Additional Information

Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Effective Date
19761122
Product Name
STA-KON AND CATAMOUNT TERMINAL
Special Functions
Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Sub Brand / Label
Dragon Tooth
Brand / LabelSta-Kon
MaterialCopper
Product TypeRing Terminal
StandardsUL E9809

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach
