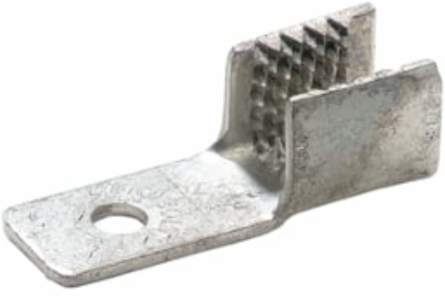

Dragon Tooth 22R061 RING TERM CU 24-15 AWG NO6 STUD
- MPN: 22R061
- UPC: 786210811345
- PPN: T-B-22R061
- UNSPSC: 39121432
CAD
$0.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Insulation Piercing Magnet Wire Ring Terminal, Length .78 Inches, Width .30 Inches, Length of Teeth .32 Inches, Width of Teeth .16 Inches, Stud Size 6, Wire Range #24 AWG - #15 AWG 404 Circular Mil Area - 4,110 Circular Mil Area, Copper Alloy, Tin Plated
Specifications
Additional Information
- Application
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
- Effective Date
- 19800612
- Product Name
- STA-KON AND CATAMOUNT TERMINAL
- Special Functions
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- Sub Brand / Label
- Dragon Tooth
Brand / LabelSta-Kon
MaterialCopper
Product TypeRing Terminal
StandardsUL E9809
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
