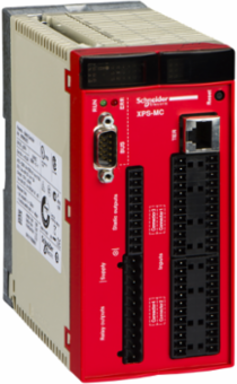

Telemecanique Sensors XPSMC32ZC safety controller, Harmony XPS MC, 24V DC, 32 inputs, 48 LEDs signalling, CANopen
Telemecanique Sensors XPSMC32ZC safety controller, Harmony XPS MC, 24V DC, 32 inputs, 48 LEDs signalling, CANopen
- MPN: XPSMC32ZC
- PPN: SCH-XPSMC32ZC
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4556.92/ EA
Description
This product is part of preventa XPCMC configurable safety controller range. It is a configurable safety controller. It is supplied with 24 V DC. It has 32 safety inputs. It conforms to Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1, PLE safety level conforming to EN/ISO 13849-1 and SIL 3 level conforming to IEC 61508. It embeds 1 RJ45 port for serial link communication with Modbus protocol. Transmission rate are 1200/2400/4800/9600 and 19200bps, and another SUB-D 9-pin male port for CANopen communication. Transmission rate are 20/50/125 and 250kbps. This product measures 153mm depth, 151.5mm height, and 74mm width. It weighs 0.84kg. This safety controller is designed for monitoring multiple safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This product is certified by CSA, UL and TÜV. It conforms to EN 954-1/EN/ISO 13849-1, EN/IEC 61496-1, IEC 61508, EN/IEC 60204-1, EN 1760-1/ISO 13856-1, EN 574/ISO 13851 and EN/IEC 60947-5-1 standards. The Safety controller XPSMC is configurable and addressable using software XPSMCWIN running on a PC and using a USB/RJ45 cable type TCSMCNAM3M002P to connect to the safety controller. It installs with a mounting plate for mounting on rail. Preventa XPSMC configurable safety controller is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508. The configurable safety controller consists of 6 variants with 16 or 32 digital inputs and 8 digital outputs and communication possibilities of Modbus RTL Serial, Profibus DP and CANopen.
Specifications
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406025EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1406025EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 151.5 mm
- Mounting Support
- mounting plate
- Power Consumption In W
- 12 W
- Response Time
- configurable : 20 ms or 30 ms with software XPSMCWIN
- Minimum Output Current
- 10 mA relay output
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
- Output Type
- 2 relays, 2 NO contacts (4 NO total) || solid state, 6, volt-free
- Parity
- even Modbus || no Modbus || odd Modbus
- Supported Modbus Function
- 01 8-bit output data/32-bit input data || 02 32-bit input data/8-bit output data || 03 information and errors
- Local Signalling
- 48 LEDs
- Maximum Line Resistance
- 100 Ohm <2000 m
- Width
- 74 mm
- [Uc] Control Circuit Voltage
- 28.8 V
- Synchronisation Time Between Inputs
- depending on configuration selected
- Breaking Capacity
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
[Ith] Conventional Free Air Thermal Current16 A relay output || 6.5 A static output circuit
Output Thermal Current4 A for both outputs simultaneously || 6 A for 1 output and 2 A for the other relay output
Minimum Output Voltage17 V relay output
Data Format1 start bit/8 data bits || 1 stop bit even or odd || 2 stop bits without parity || RTU (Remote Terminal Unit) mode
Associated Fuse Rating16 A gL power supply || 4 A gL relay output || 6 A fast blow relay output
Net Weight0.84 kg
[Ui] Rated Insulation Voltage300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
Exchange Size14 words
Method Of Accessslave
Number Of Addresses1-127 CANopen || 1-247 Modbus
Input Protection Typeexternal fuse 16 A
Depth153 mm
Function Of Moduledynamic monitoring of hydraulic valves on linear presses || eccentric press || emergency stop monitoring, with or without time delay, 1 or 2-channel wiring || enabling switch monitoring, 2 or 3 contacts || foot switch monitoring || guard monitoring for injection presses and blowing machines || guard monitoring with 1 or 2 limit switches || hydraulic press || magnetic switch monitoring category 4 EN/IEC 61496 || monitoring safety stop at top dead centre on eccentric press category 3 EN 574/ISO 13851 || muting function of light curtains || position selector || safety mat monitoring || safety time delays || shaft/chain breaking monitor || zero speed detection || light curtain monitoring category 4 IEC 61496 || two-hand control category 3 EN 574/ISO 13851
Breaking Capacity2 A 24 V static output circuit || 1.5 A 24 V DC-13)50 ms relay output
Specifications
- Product Certifications
- UL || TÜV || CSA
- Range Of Product
- Preventa Safety automation
- Number Of Inputs
- 32
- Safety Module Name
- XPSMC
- Communication Port Protocol
- CANopen 1 SUB-D 9-pin male, serial link 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps or 1 Mbps || Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
- Safety Level
- can reach PL e/category 4 EN 954-1/EN/ISO 13849-1 || can reach SIL 3 IEC 61508
[Us] Rated Supply Voltage24 V DC - 20...20 %
StandardsIEC 60947-5-1 || EN 574/ISO 13851 || EN 1760-1/ISO 13856-1 || IEC 61496-1 || IEC 61508 || EN 954-1/EN/ISO 13849-1 || IEC 60204-1
Product Or Component Typeconfigurable safety controller
Type Of Startconfigurable
Safety Use Categorycategory 4 maximum EN 954-1/EN/ISO 13849-1 || PLE maximum ISO 13849-1 || SIL 3 maximum IEC 61508
