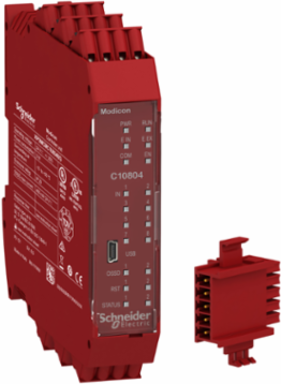

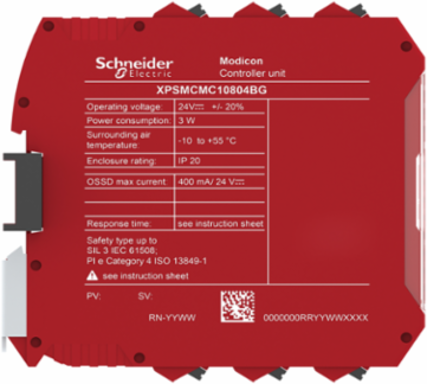

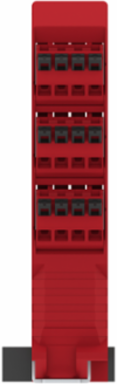

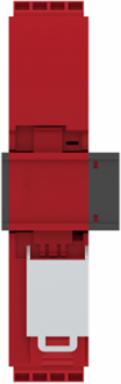

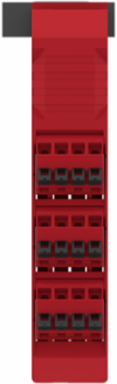

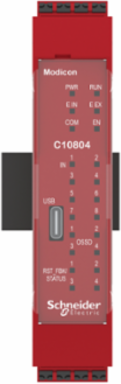

Schneider Electric XPSMCMC10804BG Modicon MCM Safety Controller, 8 Inputs 4 Outputs, 24V DC, IP20
- MPN: XPSMCMC10804BG
- PPN: SCH-XPSMCMC10804BG
CAD
$1146.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon MCM Safety Controller, 8 Inputs 4 Outputs, 24V DC, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy
Depth114.5 mm
Complementary Attributes
- Integrated Connection Type
- backplane expansion bus, USB 2.0 port
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-1.5 mm² - AWG 23...AWG 16 flexible with cable end, without bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end
- Function Of Module
- light curtain monitoring EN/ISO 14119emergency stop ISO 13850, guard monitoring EN/ISO 14119, enabling switch monitoring IEC 60947-5-1, light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1, switch monitoring EN 574, two-hand control EN/ISO 14119, safety mat monitoring IEC 61326-1, switch monitoring IEC 61800-5-2, muting function of light curtains IEC 61800-5-2, safety time delays, counter functions
- Local Signalling
- 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable, 8 LEDs yellow IN input status, 2 LEDs green/red OUT output status, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output channel
- Safety Reliability Data
- PFHd = 1.35E-8 1/h high, DC > 99 %, MTTFd < 100 years
- Certificate Agency
- TÜV, RCM, cULus
- Maximum Number Of I/O Expansion Module
- 14 128 input, 14 32.0 output
- Local Publishable Date
- 2025-11-25
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Device Short Name
- XPSMCM
- Inductive Load
- 2.4 mH
- Load Capacitance
- 0.82 µF
- Overvoltage Category
- II
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- No
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 22.5 mm
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Package Weight(Lbs)
- 267.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Kit Composition1 safety controller CPU, 1 backplane expansion connector
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, type 4 IEC 61496-1, SILCL 3 IEC 62061
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals2 spring terminals, removable terminal block, 1 spring terminals, removable terminal block
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2030
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Data Storage EquipmentSD card optional)
Electrical Connectionspring terminal
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Power Dissipation In W3 W
Product Or Component Typemodular safety controller CPU kit
Range Of ProductModicon Safety automation
Service Life20 year(s)
Sustainable PackagingNo
Height Nominal99 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- modular safety controller CPU kit
Range Of ProductModicon Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Number Of Outputs
- 4 safety outputs OSSD contactor/drive connection, 4 test line control outputs, 4 configurable diagnostic connection, 4
- Discrete Output Type
- PNP
Discrete Output Current400 mA
Input Attributes
- Discrete Input Type
- safety input, PNP
- Synchronisation Time Between Inputs
- < 0.5 ms, < 0.5 ms
- Discrete Input Voltage
- 24 V
Number Of Inputs8 digital input connection, 4 digital interlock start/restart or external device monitoring
Discrete Input Current400 mA
