Schneider Electric XPSMCMDO0004SG Modicon MCM Expansion Module, 4 DO, 400mA, IP20, 24V DC
Schneider Electric XPSMCMDO0004SG Modicon MCM Expansion Module, 4 DO, 400mA, IP20, 24V DC
- MPN: XPSMCMDO0004SG
- PPN: SCH-XPSMCMDO0004SG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$817.42/ EA
Description

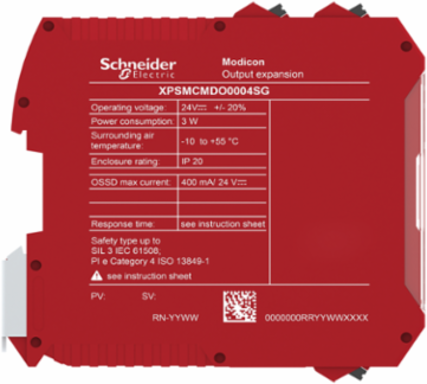

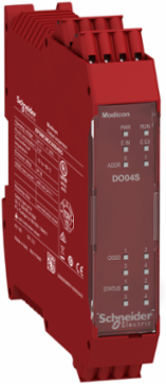

This Modicon MCM safe output expansion module has 4 single channel OSSD with 400mA output current, 4 status outputs SIL 1/PL c and is fitted with captive spring clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe I/O module figures configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.14kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÜV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. This safe I/O module can only be configured with XPSMCMC10804 or XPSMCMC10804G safety controlles CPU. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409010EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1409010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Connections - Terminals
- 1 spring clamp terminals, removable terminal block || 2 spring clamp terminals, removable terminal block
- Height
- 99 mm
- Cable Cross Section
- 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.2-2.5 mm² - AWG 24...AWG 14 solid with cable end, without bezel || 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel
- Discrete Input Voltage
- 24 V DC
- Local Signalling
- 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 4 LEDs green/red OUT output status || 4 LEDs yellow RST restart signal
- Discrete Output Voltage
- 24 V DC
- Quality Labels
- CE
- Width
- 114.5 mm
- Depth
- 22.5 mm
- Output Load
- 60 Ohm
Number Of Terminal Blocks6
Integrated Connection Typebackplane expansion bus
Load Typeresistive load
Power Consumption In W3 W
Net Weight0.25 kg
Power Dissipation In W3 W
Mounting Supportomega 35 mm DIN rail EN 50022
Discrete Output Current400 mA || 100 mA
Safety Levelcan reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || can reach SIL 3 IEC 61508 || SILCL 3 IEC 62061
Environment
- Product Certifications
- RCM || cULus || TÜV
- Pollution Degree
- 2
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)IEC 61496-1
- Ip Degree Of Protection
- IP20 enclosure)
- Service Life
- 20 year(s)
- Safety Reliability Data
- DC > 99 % || MTTFd = 238 years high || PFHd = 1.12E-8 1/h
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
StandardsIEC 61508 || IEC 61800-5-1 || ISO 13849-1 || IEC 62061
Ambient Air Temperature For Operation-10-55 °C
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
Ambient Air Temperature For Storage-20-85 °C
Relative Humidity10-95 %
Overvoltage CategoryII
Specifications
- Discrete Output Type
- PNP
- Range Of Product
- Preventa Safety automation
- Product Or Component Type
- safe output expansion module
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Device Short Name
- XPSMCM
Discrete Input Typeisolated
Number Of Outputs4.0 safety outputs OSSD safety outputs OSSD
Number Of Inputs4 digital external device monitoring
Electrical Connectionspring terminal
Function Of Modulemonitoring safety actuators discrete output
