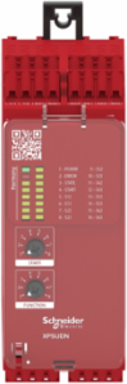

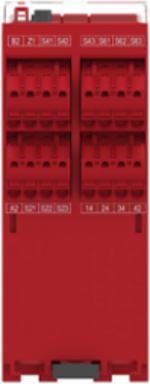

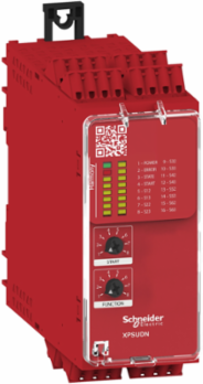

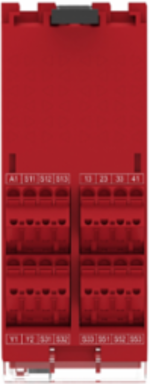

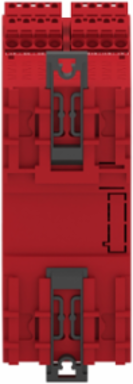

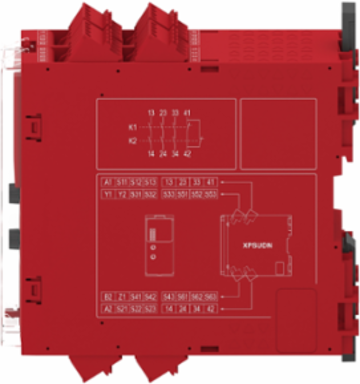

Schneider Electric XPSUDN33AC Harmony Safety Module, Cat.4, 6 Inputs, 48-240V AC/DC, 0.350kg
- MPN: XPSUDN33AC
- PPN: SCH-XPSUDN33AC
CAD
$649.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Safety Module, Cat.4, 6 Inputs, 48-240V AC/DC, 0.350kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Current
- 10 mA relay output
Maximum Response Time On Input Open20 ms
Minimum Output Voltage12 V relay output
Important Information Attributes
- Electrical Circuit Type
- NC pair, PNP pair, antivalent pair, OSSD pair
- Local Signalling
- LED (green) for power ONLED (red) for errorLED (yellow) for start, LED (yellow) for safety status, LED (yellow) for safety input S12, LED (yellow) for safety input S13, LED (yellow) for safety input S22, LED (yellow) for safety input S23, LED (yellow) for safety input S32, LED (yellow) for safety input S33, LED (yellow) for safety input S42, LED (yellow) for safety input S43, LED (yellow) for safety input S52, LED (yellow) for safety input S53, LED (yellow) for safety input S62, LED (yellow) for safety input S73
- Safety Module Application
- monitoring antivalent contacts, for emergency stop, guard and light curtain monitoring
- Certificate Agency
- TÜV, cULus
- Connections - Terminals
- removable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9312745890161078, 0.9 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 7.561781872670984
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In W
- 6 W 48 V DC
- Product Or Component Type
- safety module
- Returnability
- No
- Software Version
- v6.2.2
- Total Lifecycle Carbon Footprint
- 202 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 525.6
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Width Nominal
- 45 mm
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- [Us] Rated Supply Voltage
- 48...240 V AC/DC - 10...10 %
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490055
Function Of Moduleemergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), proximity sensor monitoring
Safety Levelcan reach PL e/category 4 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
Safety Reliability DataPFHd = 1.36E-09 IEC 62061PFHd = 1.36E-09 IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.36E-09 ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
[Ie] Rated Operational Current3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
Carbon Footprint Of The Distribution Phase [A4]0.19770614149138088, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.015230808676850735
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]194 kg CO2 eq., 193.7064822606423
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1915
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-14 A gG NC relay output circuit IEC 60947-1
Power Consumption In Va25 VA 240 V AC 50/60 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUDN
Sustainable PackagingNo
Type Of Startautomatic/manual/monitored
Pep CodeENVPEP1811003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Italy, IT
Height Nominal100 mm
[Ith] Conventional Free Air Thermal Current16 A
[Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
Input/Output Typesemiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Package Weight(Lbs)426.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC, -25-55 °C at 24 V DC-25-50 °C at 24 V AC, -25-50 °C at 24 V AC, -25-55 °C at 24 V DC
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 202.41247567249764
- Environmental Disclosure
- ENVPEP1811003EN
- Ip Degree Of Protection
- IP20 terminals)IEC 60947-1IP40 housing)IEC 60947-1IP54 mounting area)IEC 60947-1
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-85 °C, -25-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1811003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1811003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Number Of Outputs
- 7 on/off configurable pulsed output
Minimum Output Voltage12 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
- Input Protection Type
- internal, electronic
- Number Of Inputs
- 6 safety input 24 V DC 5
Synchronisation Time Between Inputs0.5 s, 2 s, 2.2 s, 4 s
Maximum Response Time On Input Open20 ms
