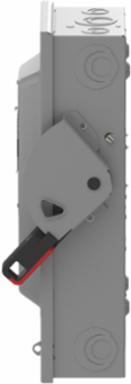

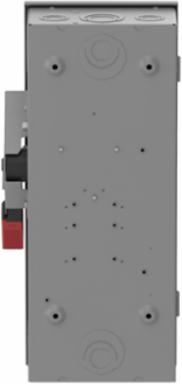

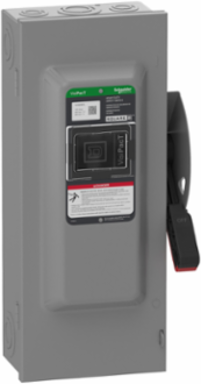

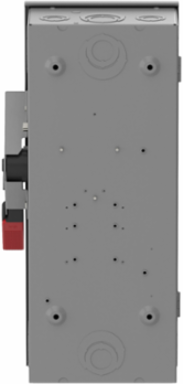

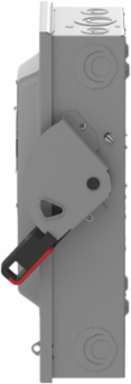

Square D VH363BGL Heavy Duty Safety Switch, 100A, 3-Pole, 600V, NEMA 1, Fused
- MPN: VH363BGL
- PPN: SCH-VH363BGL
CAD
$998.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance in demanding environments, this heavy-duty safety switch from Schneider Electric ensures reliable operation at 100 amps and is designed for three-pole connections with a voltage rating of up to 600 volts. The NEMA 1 enclosure provides essential protection in indoor applications, making it an ideal choice for various electrical systems that require secure disconnection and circuit protection. With its fused design, this safety switch enhances safety by minimizing the risk of overloads, thus protecting your equipment and ensuring operational continuity in industrial and commercial settings.
Features

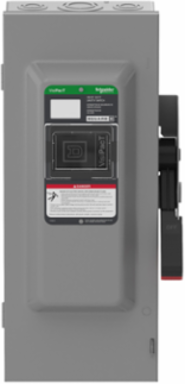

- Outfitted with a factory-installed, high-visibility viewing window, this heavy-duty disconnect allows operators to perform instant visual inspections of the internal blades with the door securely closed. This essential safety feature significantly minimizes exposure to live electrical components, streamlining routine facility maintenance and enhancing your site's arc-flash mitigation protocols.
- Engineered to reliably manage demanding electrical environments, this 3-pole single-throw safety switch handles up to 600V AC/DC and 100 Amps. It supports up to a 100 hp motor power rating at 600V AC, making it the ideal code-compliant solution for isolating high-capacity HVAC units, industrial pumps, and manufacturing machinery.
- Supplied right out of the box with a factory-installed solid neutral bonded to the enclosure and heavy-duty equipment grounding lugs, this 4-wire layout simplifies code compliance. The integrated assembly eliminates the need to source or field-install secondary grounding kits, allowing electrical contractors to fast-track installations and pass local service entrance inspections effortlessly.
- Shipped from the factory optimized for compact Class J fuses, the unit delivers a massive 200 kA short-circuit current rating (SCCR) to safely isolate downstream faults in high-energy power networks. For added facility flexibility, the internal fuse base can be easily field-modified to accept standard Class H, K, or R fuses, allowing you to match pre-existing infrastructure fuse standards without scrapping the switch core.
- Built with a rugged, indoor-rated Type 1 steel enclosure housing an ultra-durable quick-make, quick-break blade mechanism, this disconnect features a mechanical lifespan that exceeds standard NEMA benchmarks threefold. This high-endurance design snaps the contacts open or shut instantly regardless of user hand-speed, safely suppressing internal arcing and providing long-term reliability for heavy industrial motor and lighting main feeds.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

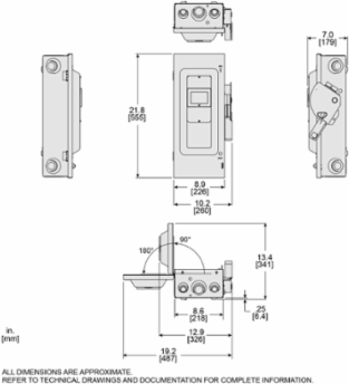

| Depth | 7.04 in |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 25 hp at 480 V AC 50-60 Hz for 3 phase motors, 60 hp at 480 V AC 50-60 Hz for 3 phase motors30 hp at 600 V AC 50-60 Hz for 3 phase motors, 100 hp at 600 V AC 50-60 Hz for 3 phase motors50 hp at 600 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 2.594268116258045, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.30579078982025976, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 30 kg CO2 eq., 30.34737347722995 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper |
| Device Composition | neutral (factory bonded) |
| Electrical Connection | lugs |
| Fuse Type | J |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |

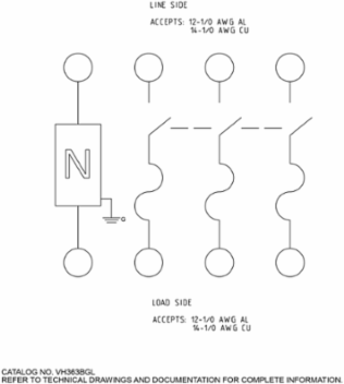

| Wiring Configuration | 4-wire (3PH + N) |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 8.91 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 50-50 lbf.in (1 AWG...3/0 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 21 kg CO2 eq., 20.7310951073816 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 53 kg CO2 eq., 52.820043208260074 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 107 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 21.84 in |
| Certificate Agency | UL listed file E2875 |
| Short-circuit Current | 200 kA for J |
| Package Weight(Lbs) | 8.128 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Carbon Footprint | 106.79857069894993 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
