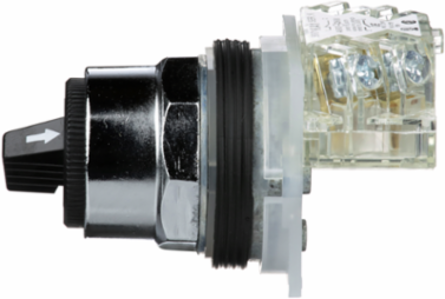

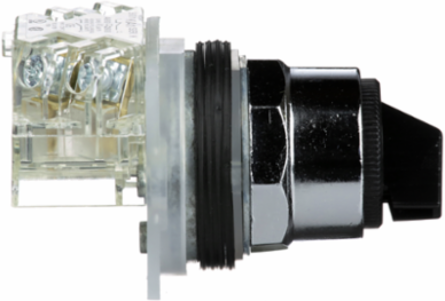

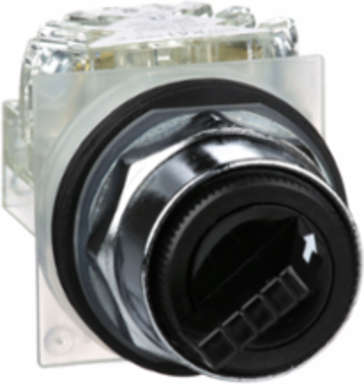

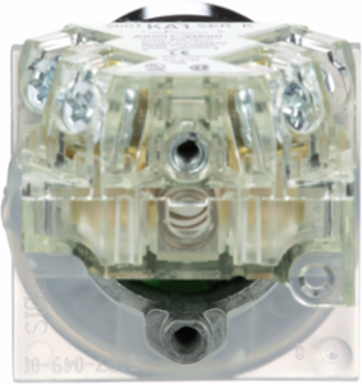

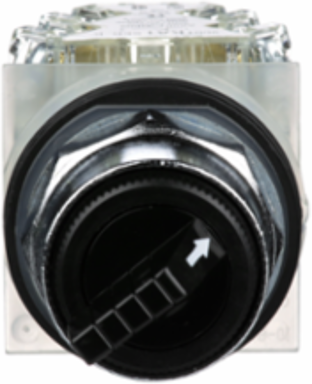

Schneider Electric 9001KS11BH13 Selector Switch, Harmony 9001K, Metal, 30mm, 2 Positions, Black
- MPN: 9001KS11BH13
- UPC: 785901330226
- PPN: SCH-9001KS11BH13
CAD
$123.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black standard perated knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions operator and is supplied with 1 x C/O contact and screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- Engineered for seamless integration, this heavy-duty Schneider Electric Harmony 9001K selector switch features a standard 30mm (1.18 in) mounting diameter. It drops directly into industrial control panels and push-button enclosures without the need for custom boring or adapters, minimizing retrofitting downtime during layout upgrades.
- This model features a 2-position, left-to-right throw equipped with a "stay put" maintained contact mechanism. Once the standard black knob is rotated, it securely locks into position rather than springing back, ensuring critical machinery or process controls remain reliably set without manual operator oversight.
- To streamline panel building, the 9001K metal range features an automatic self-grounding operator design that entirely eliminates the need for extra grounding wires. Combined with pre-backed screw clamp terminals that accelerate termination, industrial technicians can shave valuable hours off large-scale control station wiring projects.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- selector switch
- Device Short Name
- K
Type Of Operatorstay put
Operator Profileblack standard knob
Complementary
- Cam Profile
- 5
- Operator Profile
- standard handle
- Size
- 30 mm
- Connections - Terminals
- screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Bezel Material
- metal
- Operator Position Information
- 2 positions
Mounting Diameter30 mm
Cap/Operator Or Lens Colourblack
Device Presentationcomplete product
Contacts Type And Composition1 C/O
Product Compatibility9001KA1 side 2
Type Of Operatorstay put
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Environment
- Product Certifications
- CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
