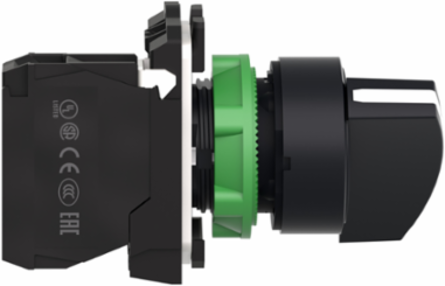

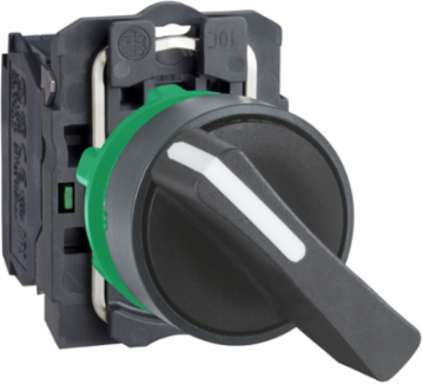

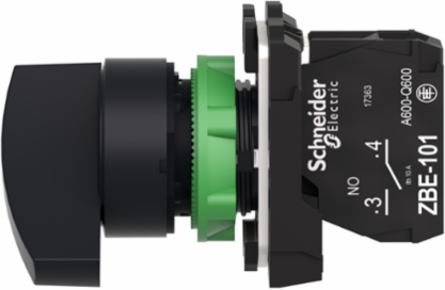

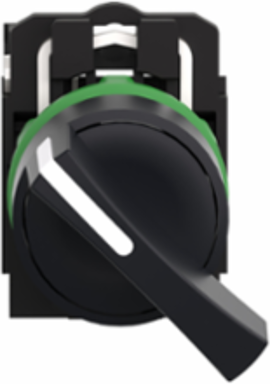

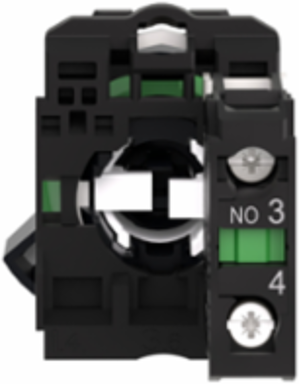

Schneider Electric XB5AJ21 Harmony XB5 Selector Switch, 22mm, Black, Long Handle, 1 NO, IP69K
- MPN: XB5AJ21
- PPN: SCH-XB5AJ21
CAD
$48.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB5, long handle modular black selector switch has 2 positions, operates with a stay-put mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an comfortable manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Features
- The Schneider Electric XB5AJ21 is designed for standard 22mm diameter panel cutouts, ensuring seamless, drop-in integration with your existing industrial control panels without requiring custom drilling or modifications. As a complete product from the legendary Harmony XB5 modular range, it simplifies your inventory and layout planning by bundling the operator head, mounting collar, and contact block into a single, ready-to-mount unit.
- This high-performance selector switch features a 2-position, 90-degree "stay-put" (maintained) mechanism that securely locks into your chosen On/Off position until manually turned. This eliminates the risk of accidental resets or contact bounce in heavy machinery applications, ensuring a reliable manual interface for selecting operating modes or isolating control circuits.
- Engineered with a high-impact plastic bezel, this switch delivers superior resistance to aggressive chemical agents and corrosive oils compared to metal alternatives, while achieving elite IP67, IP69, and IP69K ratings. This means your control infrastructure remains fully dust-tight and completely waterproof even when subjected to intense 1015-psi high-pressure cleaning and hot washdowns up to 131°F (55°C).
- Out of the box, the unit comes equipped with a highly reliable 1 NO (Normally Open) slow-break silver alloy contact block rated for up to 600V AC/DC and heavy-duty A600/Q600 industrial loads. It features an incredibly high electrical reliability rating with failure rates lower than one in a hundred million cycles at low power, preventing expensive, unexpected machine downtime in precision automation environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Operator Position Information
- 2 positions 90°
Mounting Diameter22 mm
Product Or Component Typeselector switch
Head Typestandard
Contacts Type And Composition1 NO
Bezel Materialdark grey plastic
Operator Profileblack long handle
Device Short NameXB5
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1
- (13-14)NO
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Depth
- 70 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height48 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Positive Openingwithout
Net Weight0.043 kg
Device Presentationcomplete product
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Torque Value0.14 N.m NO changing electrical state
Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Environment
- Product Certifications
- GL || BV || CSA || UL || LROS (Lloyds register of shipping) || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Ik Degree Of ProtectionIK04 conforming to IEC 50102
StandardsJIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
