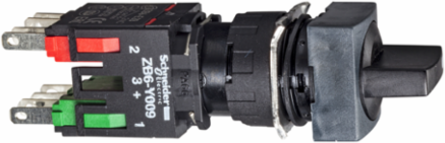

Schneider Electric XB6CD225B Harmony XB6 Selector Switch, 16mm, 2 Positions, 1NO + 1NC
- MPN: XB6CD225B
- PPN: SCH-XB6CD225B
CAD
$44.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Harmony XB6 selector switch from Schneider Electric is engineered for precision control in automation and industrial settings. This robust 16mm switch features two positions and a reliable configuration of one normally open (NO) and one normally closed (NC) contact, maximizing operational versatility. Designed for easy integration into various control systems, its dependable performance makes it a key component for effective process management. Whether used in machinery or control panels, this selector switch ensures clear functionality and enhances the efficiency of your automation solutions.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15, 1.5 A 240 V AC-15, 0.1 A 250 V DC-13, 0.22 A 125 V DC-13
- Mechanical Durability
- 500,000 cycles
- Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- IP Degree of Protection
- IP65 IEC 60529
- Electrical Shock Protection Class
- Class II IEC 61140
- Storage Temperature Range
- -40 to 70 °C (-40 to 158 °F)
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Positive Opening
- Complies with IEC 60947-5-1 appendix K
- Dimensions (H x W x D)
- 18 mm x 18 mm x 68 mm (0.71 in x 0.71 in x 2.68 in)
- Contacts Configuration
- 1 NO + 1 NC
- Bezel Material
- Plastic
- Operator Profile
- Black standard handle
- Product Or Component Type
- Complete selector switch
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant (Product out of EU RoHS legal scope)
- China Rohs Regulation
- X
- Warranty
- 18 months
- Terminals Description Iso No1
- (21-22) NC, (13-14) NO
- Connections - Terminals
- Faston connectors 2.8 x 0.5 mm
- Circularity Profile
- ENVEOLI1710010EN
- Operating Position
- Any position
Electrical Durability1,000,000 cycles AC-15 230 V, 1,000,000 cycles DC-13 230 V
Rated Insulation Voltage250 V IEC 60947-1
Short-circuit Protection6 A cartridge fuse gG
NEMA Degree of ProtectionNEMA 13, 4, 4X (UL 50), CSA C22.2 No 94
Operating Temperature Range-25 to 70 °C (-13 to 158 °F)
Vibration Resistance5 gn 2-500 Hz IEC 60068-2-6
Electrical Reliabilityλ = 10⁻⁸ at 5 V 1 mA, 90% confidence IEC 60947-5-4
Mounting Diameter16 mm (0.63 in)
Net Weight0.024 kg
Operator Position2 positions 60°
Operator TypeStay put
Contacts MaterialSilver alloy (Ag/Ni)
Shape Of Signaling Unit HeadSquare
Toxic Heavy Metal FreeYes
Rohs Exemption InformationYes
Product CertificationsGOST, CCC, UL, CSA
Protective TreatmentTC
Mercury FreeYes
Environmental DisclosureENVPEP1710010EN
Range Of ProductHarmony XB6
