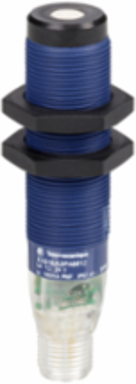

Telemecanique Sensors XXB18A3PAM12 Ultrasonic sensors XX, ultrasonic sensor, M18, reflex, Sn 0.5 m, NC, M12
- MPN: XXB18A3PAM12
- PPN: TES-XXB18A3PAM12
- UNSPSC: 39122230
CAD
$214.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This product features a plastic cylindrical body, diameter 18mm, and an M12, 4-pin connector. DC supply, NO function, PNP solid-state output, reflex system. Its sensing distance is 0.50m, remotely adjustable or by using external teach button.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0-0.508 m |
| Wiring Technique | 4-wire |
| Series Name | general purpose |
| Detection System | reflex |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 0.5-0.5 m adjustable with remote teach push-button |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XXB |
| Material | plastic |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Beam Angle | 6 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M18 |
Complementary
| Repeat Accuracy | 1.27 % |
|---|---|
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Switching Frequency | <= 40 Hz |
| Maximum Voltage Drop | 1 V |
| Transmission Frequency | 300 kHz |
| Threaded Length | 43 mm |
| Blind Zone | 0-165 mm |
| Current Consumption | 40 mA |
| Deviation Angle From 90° Of Object To Be Detected | -7-7 ° |
| Maximum Delay Recovery | 10 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 18 mm |
| Depth | 79 mm |
| Height | 18 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm 0.15 m |
| Maximum Delay Response | 10 ms |
| Status Led | supply on/output state 1 LED green/yellow) |
| [Sa] Assured Operating Distance | 0-0.508 m teach mode) |
| Marking | CE |
| Net Weight | 0.033 kg |
| Maximum Differential Travel | 2.5 mm |
| Thread Type | M18 x 1 |
| Maximum Delay First Up | 100 ms |
| Enclosure Material | valox |
| Front Material | epoxy |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -20-65 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
