Schneider Electric BCH2MB0133CA5C Lexium 28 Servo Motor 40mm 100W IP65 Free Lead
- MPN: BCH2MB0133CA5C
- PPN: SCH-BCH2MB0133CA5C
CAD
$730.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

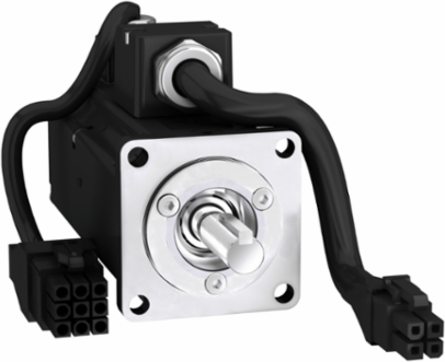

Lexium 28 Servo Motor 40mm 100W IP65 Free Lead
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden, United States
Physical Attributes
- Key Width
- 3 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Maximum Current Irms
- 2.65 A LXM28... 0.1 kW, 220 V, 2.65 A LXM28... 0.1 kW, 110 V, 2.7 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 0.89 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current0.89 A
Maximum Axial Force Fa40 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr85 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Inertia
- 0.0 kg.cm² of brake, 0.065 kg.cm² of motor
- Nominal Torque
- 0.32 N.m LXM28... 0.9 A, 220 V, three phase0.32 N.m half speed, 0.32 N.m full speed, 0.32 N.m LXM26D 0.9 A, 220 V, single phase, 0.32 N.m LXM26D 0.9 A, 220 V, three phase, 0.32 N.m LXM28... 0.9 A, 220 V, single phase, 0.32 N.m LXM28... 1.8 A, 110 V, single phase
- Phase
- single phase, three phase
- [Us] Rated Supply Voltage
- 220 V, 110 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0092903133
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.4957652466
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1504002EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2444
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 30 mm
- Coefficient 1 2
- 5.62440546E-19 N.m/rpm²
- Coefficient 1 6
- 3.2E-34 N.m/rpm6
- Coefficient 2 1
- 8.75000000000026E-06 N.m/rpm
- Continuous Stall Current
- 0.81 A
- Derating Temperature Scale
- 40.0 °C
- Device Short Name
- BCH2
- Feedback Type
- 20 bits single turn absolute encoder
- Maximum Operational Altitude
- 1000.0 m
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- asian standard flange
- Number Of Motor Poles
- 4.0
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium 28
- Rotor Inertia
- 0.075 kg.cm²
- Shaft End
- keyed
- Software Version
- EIME v5.6.0.1
- Stator Inductance
- 20.6 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 0.4 N.m/A 20 °C
- Type Of Cooling
- natural convection
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Length Total
- 100 mm
- Brake Pull-in Power
- 4.35 W
- Maximum [In] Rated Current
- 0.89 A
- Package Weight(Lbs)
- 801.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque0.32 N.m LXM28 0.9 A, 220 V, three phase0.32 N.m LXM26D 0.9 A, 220 V, single phase, 0.32 N.m LXM26D 0.9 A, 220 V, three phase, 0.32 N.m LXM28 0.9 A, 220 V, single phase, 0.32 N.m LXM28 1.8 A, 110 V, single phase
Nominal Speed3000 rpm LXM28... 0.9 A, 220 V, three phase, 3000 rpm LXM26D 0.9 A, 220 V, single phase, 3000 rpm LXM26D 0.9 A, 220 V, three phase, 3000 rpm LXM28... 0.9 A, 220 V, single phase, 3000 rpm LXM28... 1.8 A, 110 V, single phase, 3000 rpm
Peak Stall Torque0.96 N.m LXM28... 0.9 A, 220 V, three phase0.96 N.m LXM26D 0.9 A, 220 V, single phase, 0.96 N.m LXM26D 0.9 A, 220 V, three phase, 0.96 N.m LXM28... 0.9 A, 220 V, single phase, 0.96 N.m LXM28... 1.8 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase [A4]0.0111606334, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0005513114, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]1 071 kg CO2 eq., 1070.8065815257
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes46 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power100 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionfree lead
Holding Brakewithout
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter4.5 mm
Network Number Of Phases1
Number Of Motor Stacks2
Peak Nominal Torque0.96 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter8 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant0.88 ms 20 °C
Stator Resistance23.4 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint1 071 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh2185.557
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange3 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Product Compatibility
- LXM28... servo drive 0.1 kW, 220 V, three phaseLXM26D servo drive 0.1 kW, 220 V, single phase, LXM26D servo drive 0.1 kW, 220 V, three phase, LXM28... servo drive 0.1 kW, 220 V, single phase, LXM28... servo drive 0.1 kW, 110 V, single phase
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1504002EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP50 IM V3, IP65 IM B5, IM V1
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1071.3233490305
Environmental DisclosureENVPEP1504002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- single phase, three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 100 W LXM28... 0.9 A, 220 V, three phase100 W LXM26D 0.9 A, 220 V, single phase, 100 W LXM26D 0.9 A, 220 V, three phase, 100 W LXM28... 0.9 A, 220 V, single phase, 100 W LXM28... 1.8 A, 110 V, single phase
Output Current 3s Peak2.7 A
