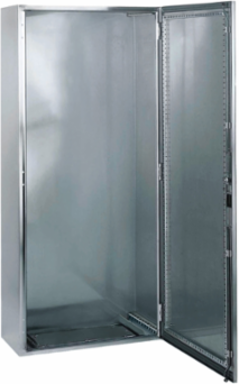

Schneider Electric NSYSMX201250H SMX 316L Stainless Monobloc Enclosure, H2000 x W1200 x D500 mm, IP55, IK10 Certified

MPN: NSYSMX201250H
PPN: SCH-NSYSMX201250H

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Experience robust protection and versatility with the SMX stainless steel monobloc enclosure, expertly crafted by Schneider Electric. This floor-standing enclosure, with dimensions of H2000mm x W1200mm x D500mm, features a durable Scotch Brite finish that not only enhances its aesthetic appeal but also contributes to its resistance against corrosion and environmental factors. Designed for multi-purpose applications, it boasts a solid body construction, two reversible front doors, and a secure three-point locking system, ensuring both accessibility and safety for your devices. With an IP55 rating and IK10 impact protection, this enclosure is built to withstand demanding conditions, making it an ideal choice for various industrial settings.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Bulgaria

Physical Attributes

Enclosure Nominal Height	2000 mm

Enclosure Nominal Width	1200 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 body2 door, 1 cable gland plate1 locking system with handle door4 mounting plate bracket
Certificate Agency	UL 508, CAN/CSA 22
Carbon Footprint Of The End-of-life Phase [C1 To C4]	336 kg CO2 eq., 336.33125654617936
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 169 kg CO2 eq., 2169.493144588875
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Type	Solid
Lock Type	3 points lock, handle with 5 mm double-bar insert
Mounting Plate Description	without mounting plate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	compact enclosure
Removable Parts	door by hingesmounting plate bracket by screwscable gland plate by clips
Software Version	v6.1
Sustainable Packaging	No
Type Of Gland Plate	plain
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Spain, ES
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	97
Package Weight(Lbs)	161.000 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Environmental Characteristic	corrosive, specific hygiene
Carbon Footprint Of The Distribution Phase [A4]	319.6369520617584, 320 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	45.247076405434456, 45 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-12-11
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	single piece body folded and welded
Door Opening Side	reversible 120 °)
Energy Efficiency Optimized	False
Material	handle zamakhinge stainless steelbody and door stainless steel 316L
Number Of Doors	front face 2
Product Name	PanelSeT SMX
Range	PanelSeT
Returnability	No
Surface Finish	enclosure Scotch-Brite® brushedhandle painted
Total Lifecycle Carbon Footprint	2 871 kg CO2 eq.
Pep Code	ENVPEP2107011EN
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	9403200090

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	2870.708429602247
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2107011EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2107011EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
