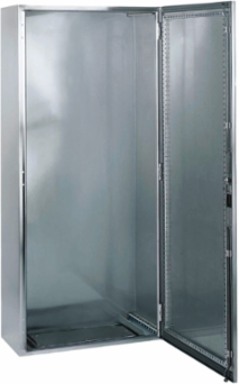

SMX 316L Stainless Monobloc Enclosure 1800mm x 1200mm x 400mm, IP55, IK10
SMX 316L Stainless Monobloc Enclosure 1800mm x 1200mm x 400mm, IP55, IK10
Schneider Electric

Schneider Electric NSYSMX181240H SMX 316L Stainless Monobloc Enclosure 1800mm x 1200mm x 400mm, IP55, IK10

  • MPN: NSYSMX181240H
  • PPN: SCH-NSYSMX181240H
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

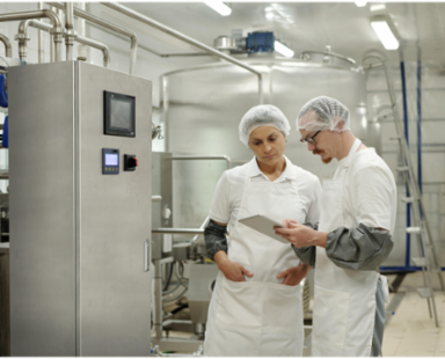

    The SMX 316L stainless monobloc enclosure from Schneider Electric is designed for durability and versatility in a range of applications. With dimensions of 1800 mm in height, 1200 mm in width, and a depth of 400 mm, this floor-standing enclosure is constructed from high-quality 316L stainless steel, making it ideal for environments that demand hygiene and resistance to corrosion. The enclosure features a Scotch Brite finish, enhancing its aesthetic appeal while ensuring robust protection with an IP55 rating against dust and water, and an IK10 rating for impact resistance. Designed for easy access and operation, it includes a solid door with a reversible opening and a secure three-point locking system, making it a reliable choice for various industrial needs.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Bulgaria

    Physical Attributes

    Enclosure Nominal Height
    1800 mm
    Enclosure Nominal Width1200 mm

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    1 body2 door, 1 cable gland plate1 locking system with handle door4 mounting plate bracket
    Certificate Agency
    UL 508, CAN/CSA 22
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    284 kg CO2 eq., 284.1059061508099
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 833 kg CO2 eq., 1832.6153271061307
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    7
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Device Application
    multi-purpose
    Door Type
    Solid
    Lock Type
    3 points lock, handle with 5 mm double-bar insert
    Mounting Plate Description
    without mounting plate
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    compact enclosure
    Removable Parts
    door by hingesmounting plate bracket by screwscable gland plate by clips
    Software Version
    v6.1
    Sustainable Packaging
    No
    Type Of Gland Plate
    plain
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Spain, ES
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %
    97
    Package Weight(Lbs)
    136.000 kg
    Warranty (In Months)
    18
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Environmental Characteristicspecific hygiene, corrosive
    Carbon Footprint Of The Distribution Phase [A4]270.00388497142325, 270 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]38.22113286421793, 38 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2025-09-16
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1912
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Body Typesingle piece body folded and welded
    Door Opening Sidereversible 120 °)
    Energy Efficiency OptimizedFalse
    Materialhandle zamakhinge stainless steelbody and door stainless steel 316L
    Number Of Doorsfront face 2
    Product NamePanelSeT SMX
    RangePanelSeT
    ReturnabilityNo
    Surface Finishenclosure Scotch-Brite® brushedhandle painted
    Total Lifecycle Carbon Footprint2 425 kg CO2 eq.
    Pep CodeENVPEP2107011EN
    Pep Verification Date2024-07-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code9403200090

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    2424.946251092582
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-07-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2107011EN
    Ip Degree Of ProtectionIP55 IEC 60529
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2107011EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    compact enclosure

    ETIM

    ETIM 8
    EC000261
    ETIM 9EC000261

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
