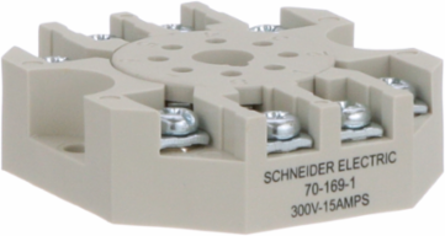

Schneider Electric 70-169-1 Socket, SE Relays general purpose relay accessory, DPDT, 15A, 300 V, 8 pins, screw clamp terminal, 750R/750H series
Schneider Electric 70-169-1 Socket, SE Relays general purpose relay accessory, DPDT, 15A, 300 V, 8 pins, screw clamp terminal, 750R/750H series
- MPN: 70-169-1
- PPN: SCH-70-169-1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$14.42/ EA
Description
Legacy general purpose relay series accessory , optional socket for 750/750H series relays with DPDT configuration contacts rated 15A at 300V. Screw clamping connect terminals 8 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=70-169-1_3D&p_File_name=70-169-1_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=70-169-1_3D&p_File_name=70-169-1-SchneiderElectricMagnecraft-2DFrontView-03-10-2020.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=70-169-1_3D&p_File_name=70-169-1-SchneiderElectricMagnecraft-2DRightSideView-03-10-2020.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=70-169-1_3D&p_File_name=70-169-1_3D.dxf
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Line Rated Current
- 15 A
Ue Rated Operational Voltage300 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Connections Terminals
- screw clamp terminals, AWG 14...AWG 12, panel screw clamp terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 stranded for output
- Local Data Status
- Publishable
- Global Commercial Status
- End of commerc. announced
- Stocking Flag
- Y
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- China Rohs In Scope
- Yes
- Without Single Use Plastic
- Yes
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 2 NO + 2 NC
- Flame Retardance
- UL94-V0
- Product Or Component Type
- socket
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.9 N.m
- Width Nominal
- 50 mm
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Medium DescSocket, SE Relays general purpose relay accessory, DPDT, 15A, 300 V, 8 pins, screw clamp terminal, 750R/750H series
Local Publishable Date2026-01-12
Return IndicatorY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function OptionStandard
Contact Terminal Arrangementmixed
Fixing Modeby screw M3.5, M3.5 panel
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shape Of Screw Headcombination roundhead
Switch FunctionDPDT
Pep CodeENVPEP2202006EN
Environment Attributes Main
- Product Compatibility
- relay 750XBXR, relay 750XBXH, relay TDRPRO-5101/5102
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -40-105 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202006EN
Take BackNej
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Ambient Air Temperature For Operation-40-55 °C
Environmental DisclosureENVPEP2202006EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- socket
Range Of ProductLegacy
Specifications
- Depth
- 57 mm
Downloads
