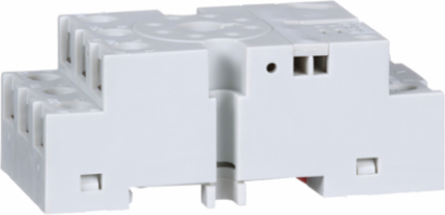

Square D 8501NR52 Plug-In Relay Socket, 8 Tubular Pins, Double Tier, 5A 600V AC
- MPN: 8501NR52
- UPC: 785901583851
- PPN: SCH-8501NR52
CAD
$19.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Taiwan, United States |
|---|
| Depth | 36 mm |
|---|
Complementary Attributes
| Line Rated Current | 5 A 600 V AC16 A 300 V AC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Support | DIN rail, panel |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0083040088, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0005120329, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI1310013EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Electrical Connection | double tiered screw clamp terminals |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.5 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 10 years with a 99% use rate, in compliance with French standards. |
| Functional-unit Unit | unité (unit) |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Ecobilan identifier / ECO-168- |
| Recyclability Potential In % | 70 |
| Width Nominal | 36 mm |
| Package Weight(Lbs) | 63.503 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL Recognized, CSA, CE |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0998349044 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.4 kg CO2 eq., 0.4226894448 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Pin Number | 8 |
| Product Or Component Type | Relay Socket |
| Range Of Product | 8501N |
| Shape Of Pin | tubular |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1310013EN |
| Pep Verification Date | 2022-10-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Ecobilan identifier / ECO-168- |
| Energy Model - End Of Life [C1-c4] | Ecobilan identifier / ECO-168- |
| Height Nominal | 77.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.531340391 |
| Environmental Disclosure | ENVPEP1310013EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1310013EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1310013EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2022-10-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Relay Socket |
|---|
| Range Of Product | 8501N |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
