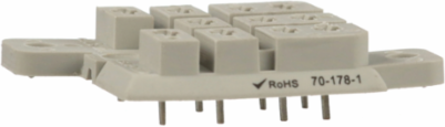

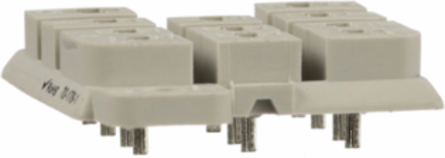

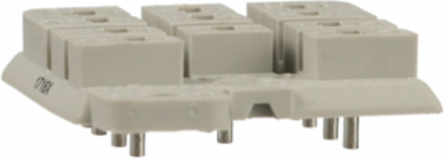

Schneider Electric 70-178-1 Socket, SE Relays general purpose relay accessory, 3PDT, 15A, 300V, 11 pins, pins for printed circuit board, panel, 788S
- MPN: 70-178-1
- UPC: 785901154969
- PPN: SCH-701781
CAD
$4.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Legacy general purpose relay series accessory , optional socket for 788R series relays with 3PDT configuration contacts rated 15A at 300V. Printed circuit boards terminals 11 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
| Depth | 51.45 mm |
|---|
Complementary Attributes
| Line Rated Current | 15 A |
|---|
Important Information Attributes
| Certificate Agency | UL, CSA, CE |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Contact Terminal Arrangement | mixed |
| Fixing Mode | by screws printed circuit boardsby screw panel |
| Number Of Terminals | 11 |
| Product Or Component Type | socket |
| Returnability | Yes |
| Switch Function | 3PDT |
| Width Nominal | 38.1 mm |
| Connections - Terminals | pin pins for printed circuit board, clamping connection capacity:1 mm², 16 AWG solid for outputpanel pins for printed circuit board, clamping connection capacity:1 mm², 16 AWG stranded for output |
| Package Weight(Lbs) | 0.02 kg |
| Warranty (In Months) | 18 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| Product Kit Identifier | N |
| Contacts Type And Composition | 3 NO + 3 NC |
| Flame Retardance | UL94-V0 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Legacy |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2202006EN |
| [Ue] Rated Operational Voltage | 300 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536698000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2202006EN |
| Ip Degree Of Protection | IP20 |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2202006EN |
| Ambient Air Temperature For Storage | -40-105 °C, -40-105 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Product Compatibility | relay 788XBXR/XCXR |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | socket |
|---|
| Range Of Product | Legacy |
|---|
