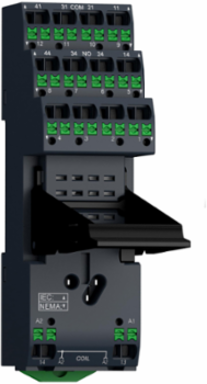

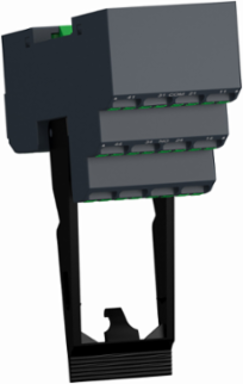

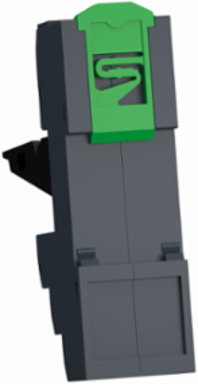

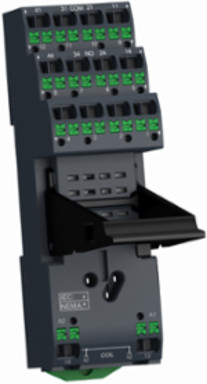

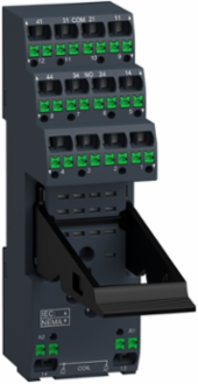

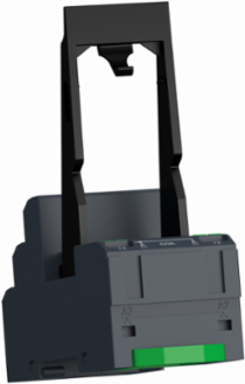

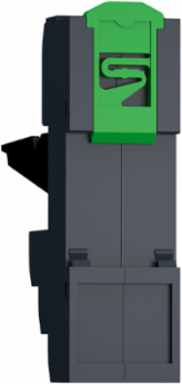

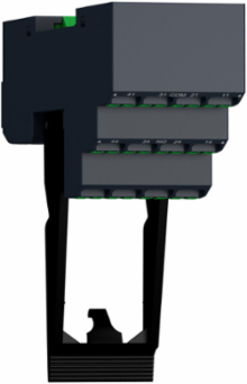

Schneider Electric RXZE14P Push-In Socket Relay 12A 2C/O, IP20, 98 mm Length, Clip-On Mount

  • MPN: RXZE14P
  • PPN: SCH-RXZE14P

CAD

$14.91

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Harmony RXZ range is a plug-in socket. It has a rated voltage of 250V AC with an output rating of 7A. It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere It is compatible with plug in control relay. It enables easy installation and connect to relay from its socket. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). This premium product conforms to international standard and certifications. This Push-in relay socket is compatible with interface plug-in relay RXM range.

Features

  • Equipped with high-performance "Push 'n Stay" spring clamp terminals, this socket eliminates the need for manual screw tightening and torque testing. Industrial panel builders and system integrators can cut hard-wiring labor times significantly while eliminating the risk of loose terminal connections over long-term operation.
  • Engineered specifically for the Schneider Electric Harmony range, the RXZE14P seamlessly accommodates flat-pin miniature plug-in relays from the RXM series.
  • Featuring a slim 31 mm width profile and an ultra-efficient separate contact terminal layout, this compact profile helps downsize industrial enclosures. Its clip-on mechanism mounts natively to standard 35 mm symmetrical DIN rails, allowing you to maximize rail real estate without compromising on thermal management or accessibility.
  • Built to handle demanding automation environments, the tool-less spring clamps provide continuous, maintenance-free contact pressure that withstands harsh equipment vibrations. Boasting a 250 V AC rated insulation voltage, a 4 kV impulse withstand rating, and a finger-safe IP20 protection rating, it prevents accidental contact and safeguards sensitive programmable logic controllers (PLCs) from electrical surges.
  • This robust socket carries comprehensive international certifications including UL, CSA, CE, EAC, and Lloyd's Register approvals. It complies fully with standard IEC 61984, ensuring your control cabinets confidently pass strict safety audits and meet all North American and international regulatory requirements.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, China, France, Singapore, United States

Complementary Attributes

Line Rated Current12 A

Important Information Attributes

Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Range Of ProductHarmony Electromechanical Relays, Harmony Timer Relays
Connections - Terminalspush-in terminals, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² 20 AWG...16 AWG) flexible with cable endspring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2168621908
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7776254417
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1951
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Contact Terminal Arrangementseparate
Device Short NameRXZ
Fixing Modeclip-on (35 mm symmetrical DIN rail)
MarkingCE
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Shape Of Pinflat
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo allow users to connect and disconnect the plug of an electrical load or the source of a signal from a network; in which the variation of current in one electric circuit controls the flow of electricity in another circuit during 20 years with UL standards E70550.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %48

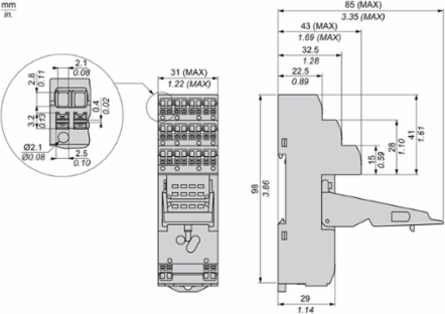

Length Total98 mm
[Ith] Conventional Free Air Thermal Current12 A 2 C/O relays6 A 4 C/O relays
[Ui] Rated Insulation Voltage250 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, Lloyd's, UL, EAC
Carbon Footprint Of The Distribution Phase [A4]0.0385583039, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0094852297, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition4 C/O
Dielectric Strength2500 V
Group Of ProductRXM_2-4_C/O_CON_SEP_FLAT
Overvoltage CategoryIII
Product Or Component Typesocket
Sale Per Indivisible Quantity10
Software Versionv5.9.4
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Pep CodeENVPEP1511020EN
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal85 mm
Width Nominal31 mm
[Ue] Rated Operational Voltage250 V IEC300 V UL
[Uimp] Rated Impulse Withstand Voltage4 kV
Package Weight(Lbs)72.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation-40-55 °C, -40-55 °C
Product Compatibilityplug-in relay RXM 2 C/O, plug-in relay RXM 4 C/O
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1511020EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.0425311661
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1511020EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Range Of ProductHarmony Electromechanical Relays, Harmony Timer Relays
Product Or Component Typesocket

ETIM

ETIM 8EC001456
ETIM 9EC001456

Output Attributes

Output Typerelay

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
