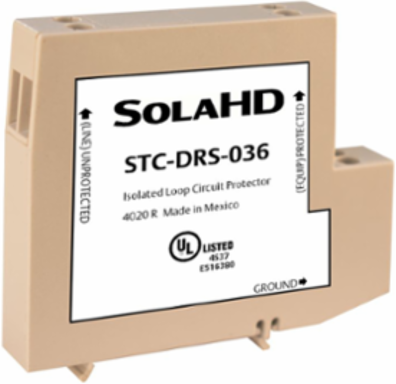

SolaHD STCDRS036 DIN Rail Surge Protection Device - Max Peak Signal Voltage 43V, 10KA Peak Current
- MPN: STCDRS036
- PPN: SHD-STCDRS036
CAD
$136.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
STC-DRS Series DIN Rail Surge Protection Device is a single pair surge protection module featuring three stage hybrid technology. Gas tubes and silicon avalanche components protect equipment from overvoltage transients, while sneak currents are mitigated with resettable fuses (PTCs). These fuses are designed to increase resistance by several orders of magnitude when an over-current exceeds safe levels, automatically resuming normal operation when the over-current is removed.
Features
- UL, RoHS
- Low-Voltage data surge protection
- Three-Stage hybrid technology
- Sneak/Fault current protection with resetable fuses (PTCs)
- Low profile packaging
- Easy installation
- Fits standard 35 mm DIN Rail
- Fast response time
Documentation & Downloads
Specifications
Key Specifications
- Max Peak Signal Voltage
- 43
- Max Current 1p 10X1000 ms (Occurrences)
- >100
- Typical Capacitance (PF)
- 1500
- Nominal Series Resistance
- 5 &8486;
Operating Voltage5 to 36 V
Peak Current 8X20 ms10KA
Max Continuous Current150ma
