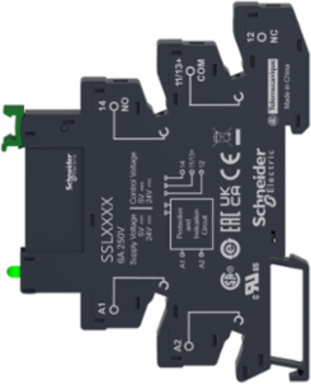

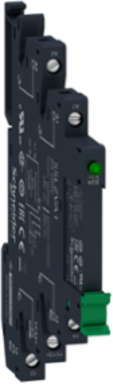

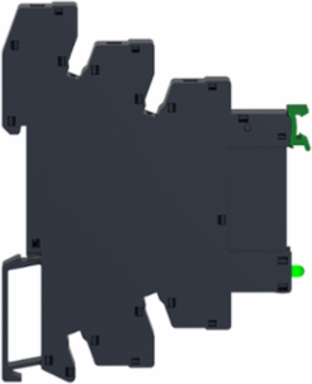

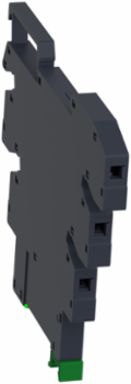

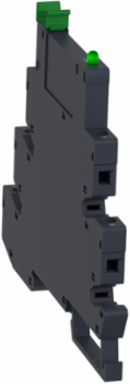

Schneider Electric SSL1D101BDPV Pre-Assembled Solid State Relay, 0.1A, 16-30V DC Input, IP67
- MPN: SSL1D101BDPV
- PPN: SCH-SSL1D101BDPV
CAD
$26.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 0.1A DC switching slim relay with 16Vdc to 30Vdc input and 1Vdc to 48Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia

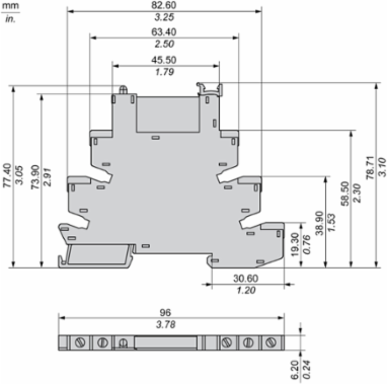

Depth79.5 mm
Complementary Attributes
- Maximum Voltage Drop
- <1 V on-state, <1 V on-state<1 V on-state, <1 V on-state
- Line Rated Current
- 0.1 A
- Maximum Switching Voltage
- 5 V DC turn-off
- Rated Current
- 0.1 A
Absolute Maximum Voltage60 V DC
Maximum Leakage Current0.001 mA off-state
Minimum Switching Voltage16 V DC turn-on
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Marking
- cURus, CSA, CE, EAC
- Control Circuit Voltage
- 16...30 V
- [Uc] Control Circuit Voltage
- DC, 16...30 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0034835806, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0001632537, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 2.815552
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Dielectric Strength
- 2500 V for input/output
- Load Current
- 0.001-0.1 A
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Solid State Relays
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2504008EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 96.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 7.1504
- Water Pollution (M3) Operational Energy Use [B6]
- 116.1776
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque< 0.5 N.m, < 0.5 N.m, 4.4 lb-in
Certificate AgencyUL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST
Connections - Terminalsflexible cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), solid cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0068904269
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.8427298224
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Short NameSSL
Flame RetardanceV0 conforming to UL 94
Mounting Supportscrew socket
Phase1 phase
Product Or Component Typepre-assembled plug-in relay with socket
Response Time0.25 ms (turn-on)0.12 ms (turn-off)
Software VersionEIME v5.7.0.4
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Database Version2018-09
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %27
Width Nominal6.2 mm
Package Weight(Lbs)27.000 g
Warranty (In Months)18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]7.1504
Customs Code8536410030
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-70 °C, -20-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2504008EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2504008EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint3.6688190835
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typepre-assembled plug-in relay with socket
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- transistor output, DC switching
- Output Voltage
- 1...48 V DC
Output Switching ModeDC switching
Surge Protection And Filtering Attributes
- Surge Current
- 0.3 A 10 ms
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Input Attributes
- Input Impedance
- 3.43 kOhm
Overview Attributes
- Device Presentation
- complete product
