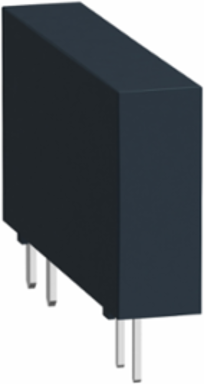

Schneider Electric SSL1D101BD Harmony Solid State Relay 0.1A 16-30V DC Input 1-48V DC Output 6mm Width

  • MPN: SSL1D101BD
  • PPN: SCH-SSL1D101BD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $14.80

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

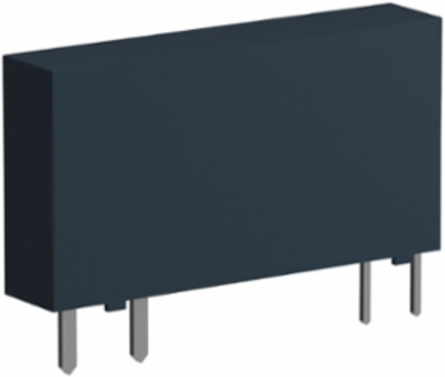

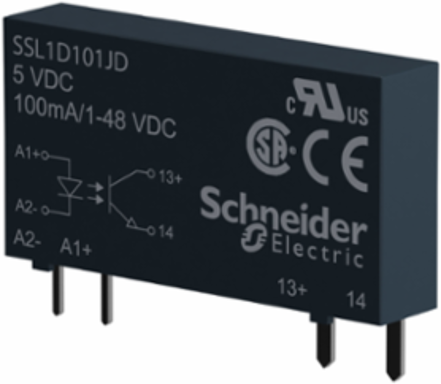

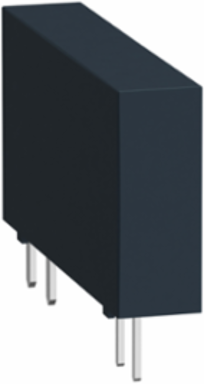

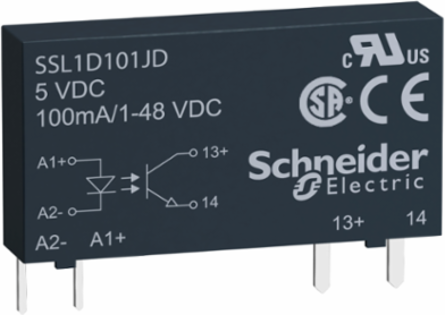

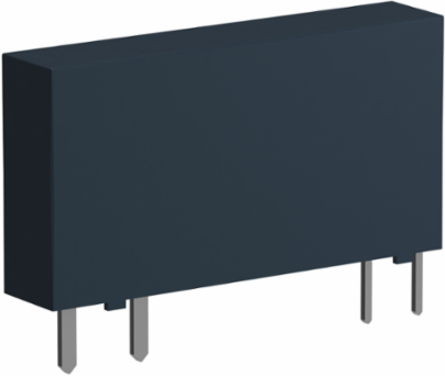

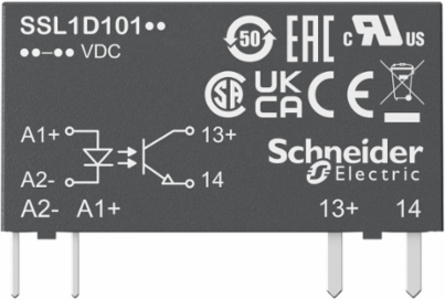

    This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 16V to 30V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Mexico
    Depth15 mm

    Complementary Attributes

    Maximum Voltage Drop
    <1 V on-state, <1 V on-state<1 V on-state, <1 V on-state, <1 V on-state, <1 V on-state<1 V on-state, <1 V on-state
    Line Rated Current
    0.1 A
    Maximum Operating Frequency
    500 Hz
    Minimum Switching Voltage
    16 V DC turn-on
    Absolute Maximum Voltage60 V
    Maximum Leakage Current0.001 mA off-state
    Maximum Switching Voltage9 V DC turn-off
    Rated Current0.1 A

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electromagnetic Compatibility
    electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2, conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4, surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5, radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1, conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
    Response Time
    0.02 ms (turn-on), 0.13 ms (turn-off)
    Certificate Agency
    cURus, CSA, EAC, CE, UKCA
    [Uimp] Rated Impulse Withstand Voltage
    5.3 kV for input/output circuit IEC 62314, 5.3 kV output to case IEC 62314, 5.3 kV for input to case UL 508, 5.3 kV output to case UL 5085.3 kV for input to case IEC 62314, 5.3 kV for input/output circuit UL 508, 5.3 kV output to case
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.001276005, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.2 kg CO2 eq., 0.1560610782
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    9.55
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Short Name
    SSL
    Flame Retardance
    V0 conforming to UL 94
    Marking
    CE
    Overvoltage Category
    III
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony Solid State Relays
    Software Version
    EIME v5.7.0.4
    Total Lifecycle Carbon Footprint
    3 kg CO2 eq.
    Database Version
    2018-09
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
    Functional-unit Unit
    unité (unit)
    Energy Model - Manufacturing [A1-a3]
    Energy model used: China
    Energy Model - Use [B6]
    Electricity mix; AC; < 1kV; EU-27
    Height Nominal
    28 mm
    [Ui] Rated Insulation Voltage
    48 V
    Package Weight(Lbs)
    3.000 g
    Warranty (In Months)
    18
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    6.3656
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC
    Control Circuit Voltage16...30 V
    [Uc] Control Circuit Voltage16...30 V DC, 16...30 V
    Carbon Footprint Of The Distribution Phase [A4]0.0006451075, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0000302322
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 kg CO2 eq., 2.506528
    Local Publishable Date2026-01-12
    Future Imap8.55
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Dielectric Strength3750 V for input/output
    Load Current0.001-0.1 A
    Mounting Supportsocket
    Phase1 phase
    Product Or Component Typeplug-in relay
    ReturnabilityYes
    Sustainable PackagingNo
    Pep CodeENVPEP2504008EN
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y20
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    Width Nominal5 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]6.3656
    Water Pollution (M3) Operational Energy Use [B6]103.4264

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-80 °C, -20-80 °C, -20-80 °C, -20-80 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    2.6645404229
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2018-09-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-20-85 °C, -20-85 °C, -20-85 °C, -20-85 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2504008EN
    Ip Degree Of ProtectionIP00
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2504008EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Phase
    1 phase
    Range Of Product
    Harmony Solid State Relays
    Product Or Component Typeplug-in relay

    ETIM

    ETIM 8
    EC002055
    ETIM 9EC002055

    Output Attributes

    Solid State Output Type
    DC switching, transistor output
    Output Voltage
    1...48 V DC
    Output Switching ModeDC switching

    Surge Protection And Filtering Attributes

    Surge Current
    0.3 A 10 ms

    Input Attributes

    Input Current
    5 mA
    Input Impedance4500 Ohm

    Overview Attributes

    Device Presentation
    complete product
