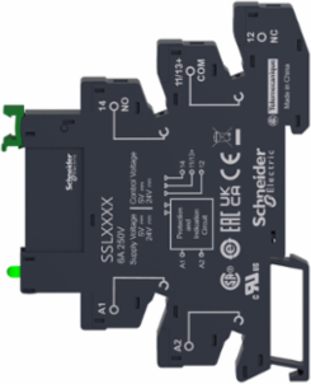

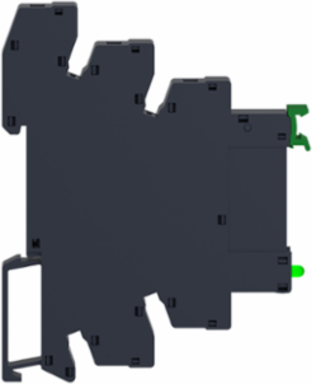

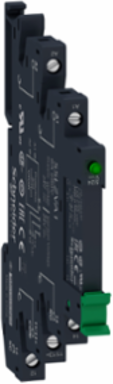

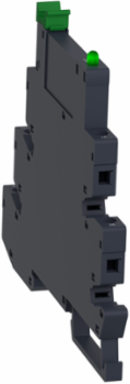

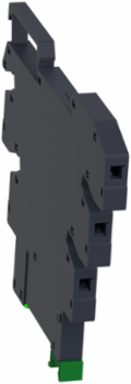

Schneider Electric SSL1D03JDPV Harmony Solid State Relay, 3.5A DC Switching, 4-12V DC Input, IP67 Encapsulation
- MPN: SSL1D03JDPV
- PPN: SCH-SSL1D03JDPV
CAD
$38.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 4Vdc to 12Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia

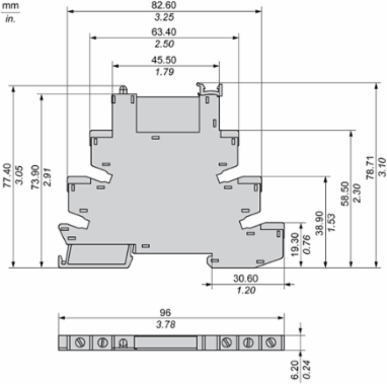

Depth79.5 mm
Complementary Attributes
- Maximum Voltage Drop
- <0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state
- Line Rated Current
- 3.5 A
- Maximum Switching Voltage
- 1 V DC turn-off
- Rated Current
- 3.5 A
Absolute Maximum Voltage30 V DC
Maximum Leakage Current0.001 mA off-state
Minimum Switching Voltage4 V DC turn-on
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Marking
- cURus, CSA, CE, EAC
- Control Circuit Voltage
- 4...12 V
- [Uc] Control Circuit Voltage
- DC, 4...12 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0034835806, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0001632537, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 15 kg CO2 eq., 15.4512
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Use Carbon Footprint
- 15.4512
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Short Name
- SSL
- Flame Retardance
- V0 conforming to UL 94
- Mounting Support
- screw socket
- Phase
- 1 phase
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Response Time
- 0.12 ms (turn-off)0.1 ms (turn-on)
- Software Version
- EIME v5.7.0.4
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Database Version
- 2018-09
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 31.536
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 96.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 664.98
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 15.4512
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 57.6078
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 308.586
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 269.346
- Water Pollution (M3) Operational Energy Use [B6]
- 637.56
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque< 0.5 N.m, < 0.5 N.m, 4.4 lb-in
Certificate AgencyUL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST
Connections - Terminalsflexible cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), solid cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0068904269
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.8427298224
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Dielectric Strength2500 V for input/output
Load Current0.001-3.5 A
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Solid State Relays
ReturnabilityYes
Sustainable PackagingYes
Pep CodeENVPEP2504008EN
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %27
Width Nominal6.2 mm
Package Weight(Lbs)27.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]175.38
Net Use Of Fresh Water (M3) Operational Energy Use [B6]56.0226
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]269.346
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]39.24
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]39.24
Customs Code8536410020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-70 °C, -20-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 16.3044670835
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2504008EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2504008EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typepre-assembled plug-in relay with socket
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- Mosfet output, DC switching
- Output Voltage
- 1...24 V DC
Output Switching ModeDC switching
Surge Protection And Filtering Attributes
- Surge Current
- 9 A 10 ms
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Input Attributes
- Input Impedance
- 500 Ohm
Overview Attributes
- Device Presentation
- complete product
