Schneider Electric SSL1D101JD Harmony Solid State Relay, 0.1A, 3-12V DC, 1-48V DC Output, 6mm Width
- MPN: SSL1D101JD
- PPN: SCH-SSL1D101JD
CAD
$14.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

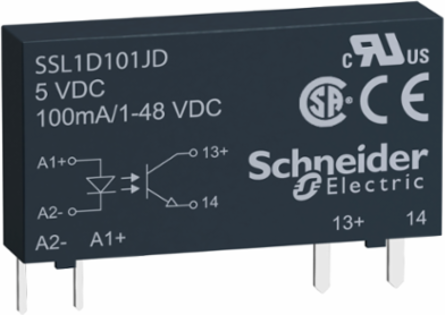

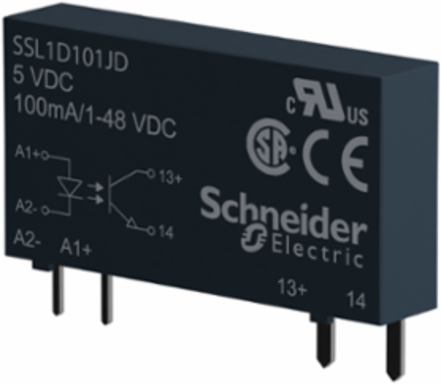

This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Solid State Relays
- Product Or Component Type
- solid state relay up to 10 A
- Device Short Name
- SSL
Output Switching ModeDC switching
Network Number Of Phases1 phase
Complementary
- [Uc] Control Circuit Voltage
- 3...12 V DC
- Output Voltage
- 1...48 V DC
- Maximum Voltage Drop
- <1 V on-state
- Surge Current
- 0.3 A 10 ms
- Net Weight
- 0.0041 kg
- Maximum Leakage Current
- 0.001 mA off-state
- Input Current Limits
- 4-4 mA
- Maximum Switching Voltage
- 1 V DC turn-off
- Capacitance Unbalance
- 1.5 pF input/output
- Width
- 5 mm
- Depth
- 15 mm
Height28 mm
Mounting Supportsocket
Response Time0.02 ms turn-on) || 0.13 ms turn-off)
Load Current0.001-0.1 A
Minimum Switching Voltage3 V DC turn-on
Absolute Maximum Voltage60 V DC
Input Impedance1250 Ohm
Solid State Output Typetransistor output || DC switching
[In] Rated Current0.1 A
Overvoltage CategoryIII
Maximum Operating Frequency500 Hz
Environment
- Product Certifications
- UL || CSA
- Pollution Degree
- 2
- Marking
- CE
- Ambient Air Temperature For Storage
- -20-85 °C
Ambient Air Temperature For Operation-20-80 °C
Dielectric Strength3750 V input/output
Flame RetardanceV0 UL 94
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1405004EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1405004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
