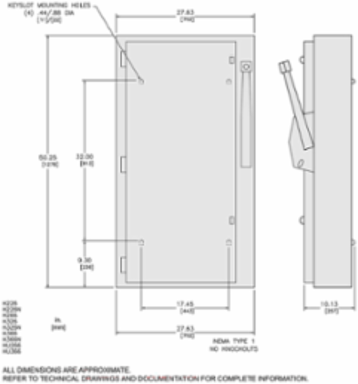

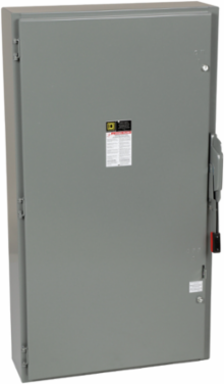

Square D HU366 Heavy Duty Safety Switch, 600A, 3 Pole, 500HP, NEMA 1, 600V AC/DC
- MPN: HU366
- UPC: 785901505655
- PPN: SCH-HU366
CAD
$3777.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Engineered for robust power management, the Heavy Duty Safety Switch from Schneider Electric is a crucial component for industrial and commercial applications. Capable of handling up to 600A and equipped with three poles, it supports high-powered requirements with a capacity of 500HP at 600V AC/DC, making it indispensable for three-phase motors. Built from durable NEMA 1 steel, this switch ensures reliable operation in a variety of environments, while its compatibility with copper or aluminum conductors up to AWG 3/0 to 500 kcmil enhances its versatility. With safety and efficiency at its core, this device is designed for seamless integration into control panel systems and is ideal for electricians and system integrators aiming to ensure dependable electrical management.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth10.13 in
Complementary Attributes
- Line Rated Current
- 600 A
Ue Rated Operational Voltage600 V AC/DC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 50 hp at 600 V DC, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 400 hp at 480 V AC 50-60 Hz for 3 phase motors, 500 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 193 kg CO2 eq., 192.73633384010333
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 405 kg CO2 eq., 405.15953802458023
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- heavy application
- Disconnector Device Type
- non-fusible disconnect
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 2 030 kg CO2 eq.
- Wiring Configuration
- 3-wire
- Pep Code
- ENVPEP2503029EN
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 50.25 in
- Certificate Agency
- UL listed file E2875
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A4200.94224539111337, 201 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1919004712198152, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B61 231 kg CO2 eq., 1230.7965359690943
Local Publishable Date2025-12-16
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 3/0...500 kcmil copper or aluminium
Device Compositionnone
Electrical Connectionlugs
Halogen Free StatusHalogen free plastic parts product
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv6.2.4
Tightening Torque375-375 lbf.in (AWG 3/0...500 kcmil)
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %90
Width Nominal27.63 in
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint2029.826553696111
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 1 steel
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
