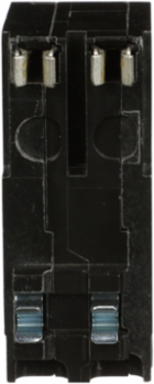

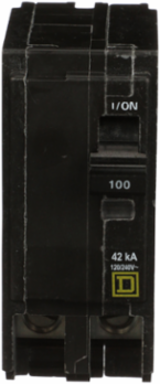

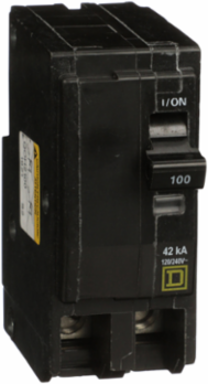

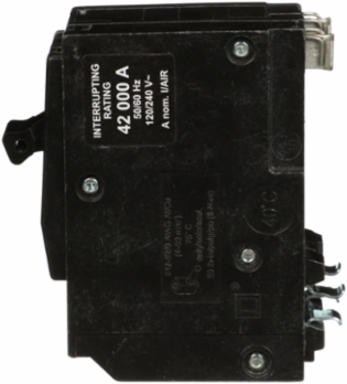

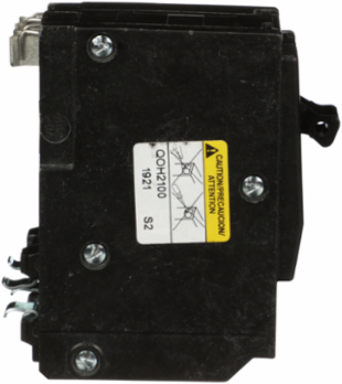

Square D QOH2100 Mini Circuit Breaker 100A 2 Pole 120/240VAC 42kA Plug-In Mount
Square D QOH2100 Mini Circuit Breaker 100A 2 Pole 120/240VAC 42kA Plug-In Mount
- MPN: QOH2100
- UPC: 785901054870
- PPN: SCH-QOH2100
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$524.29/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 42kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 100 A
- Interrupt Rating
- 42 kA 120/240 V AC 50/60 Hz
- Circuit Breaker Type
- standard
- Wire Size
- AWG 4...AWG 2/0 copper or aluminum
- Height
- 89 mm (3.50 in)
- Depth
- 74 mm (2.91 in)
- Compliance
- UL Listed, CSA Certified
- Halogen Content
- Halogen free
- Warranty
- 18 months
Voltage Rating120/240 V AC
Number of Poles2P
Mounting Typeplug-in
Tightening Torque5.6 N.m
Width57 mm (2.24 in)
Net Weight0.313 kg (0.69 lb)
Ambient Rating40 °C (104 °F)
RoHS CompliantYes (with exemptions)
