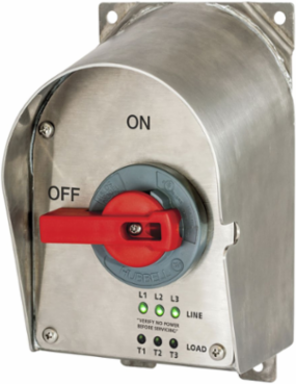

Hubbell Wiring Device-Kellems HBLDS10SSRPAC Stainless Steel 100A Enclosed Disconnect Switch with LED Indicators, 9 Inch

Stainless Steel 100A Enclosed Disconnect Switch with LED Indicators, 9 Inch
  • MPN: HBLDS10SSRPAC
  • UPC: 783585640495
  • PPN: HBL-HBLDS10SSRPAC
  • UNSPSC: 39122205

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4085.69/ EA

Description

SS SLOPED DISC,100A LED PHASE, 4X,HBLAC1

Features

  • Six highly visible integral phase identification LEDs for use on 3 Phase Y system
  • Secondary confirmation of isolation of power
  • Certified by NSF
  • Highly visible red handle meets OSHA LO/TO capabilities
  • Accepts up to 2 Auxiliary contacts

Specifications

Amperage
100A
Short Circuit Current Rating
65kA RMS symmetrical, 600V AC max with Class J fuses rated 30A max
Operating Temperature
-40°C to 75°C continuous
Conduit Hub Size
1 1/4 in Zinc
Frame Material
Galvanized Steel
Shaft Material
PBT
Shaft Seal Material
Molded Neoprene
LED Lens Material
PC
Flammability
UL94-5VA and V0
Country of Origin
CN
Voltage600V AC RMS
Dielectric Voltage3000V AC minimum
Width9.000 in
Enclosure Material304 Stainless Steel
Handle MaterialPBT
Enclosure Gasket MaterialNeoprene
Enclosure Screws MaterialStainless Steel 300 Series
Environmental RatingUL Witnessed IP69K, 4X, 12
CertificationscULus Listed, NSF
