Schneider Electric SSD1A335M7C1 Harmony Solid State Relay, 35A, Zero Voltage Switching, Input 90-280V AC/DC, Output 48-600V AC
- MPN: SSD1A335M7C1
- PPN: SCH-SSD1A335M7C1
CAD
$126.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

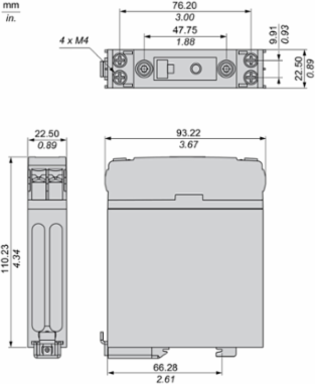

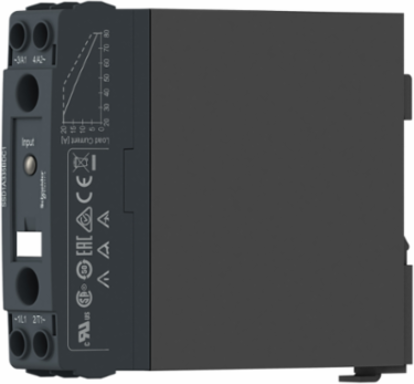

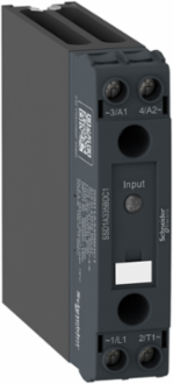

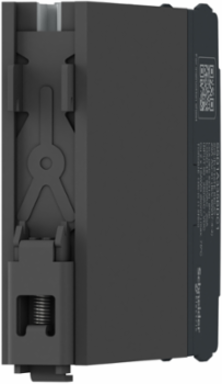

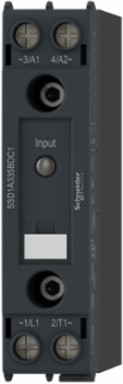

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 35A power rated relay with relay type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.298Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth117.1 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
- Line Rated Current
- 35 A
- Maximum Switching Voltage
- 5 V AC/DC turn-off
- Rated Current
- 35 A
Absolute Maximum Voltage1200 V
Maximum Leakage Current1 mA off-state
Minimum Switching Voltage90 V AC/DC turn-on
Rated Dutyuninterrupted
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Coordination Type
- type 1, type 2
- Electromagnetic Compatibility
- surge immunity test 1 kV criteria A input ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria A input ports line to earth conforming to IEC 61000-4-5electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for AC input supply conforming to IEC 60947-4-3conducted emission environment A for AC input supply conforming to IEC 60947-4-3, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
- Tightening Torque
- 13...15 lb.in for load output, 1.5...1.7 N.m for control input, 13...15 lb.in for control input, 1.5...1.7 N.m for load output
- Certificate Agency
- IEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV for input/output circuit, 6 kV for input or output to case
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0415452906, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0016556268, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 60 kg CO2 eq., 60.0867555556
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Contact Form
- Form 5 semiconductor output DOL contactor
- Device Short Name
- SSD1
- Inrush Current
- 1350 A at 60 Hz
- Load Current
- 0.2-35 A
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Number Of Channels
- 1
- Phase
- 1 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- modular DIN rail relay
- Response Time
- 20 ms (turn-on)30 ms (turn-off)
- Shock Resistance
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-2730 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Sustainable Packaging
- Yes
- Vibration Resistance
- 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP1508007_V3
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 75
- Width Nominal
- 22.5 mm
- Maximum I²T For Fusing
- 8320 A².s for 10 ms7593 A².s for 8.33 ms
- Package Weight(Lbs)
- 320.000 g
- Warranty (In Months)
- 18
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 152.6
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength4 kV AC for input/output circuit, 4 kV AC for input or output to case
Motor Power Kw1.5 kW/2 hp at 120 V AC, 3.73 kW/5 hp at 240 V AC, 7.46 kW/10 hp at 480 V AC
Control Circuit Voltage90...280 V
[Uc] Control Circuit VoltageAC/DC, 90...280 V
Connections - Terminalsscrew terminals, clamping connection capacity:1...4 mm², 18 AWG...12 AWG for input, screw terminals, clamping connection capacity:1...6 mm², 18 AWG...10 AWG for output, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0441376943
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.8260283019
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typewithout test button
Flame RetardanceV-0 conforming to UL 94
Insulation Resistance1000 MOhm at 500 V DC
Local SignallingLED (green) for control voltage
Network Frequency47...440 Hz
Overvoltage CategoryIII
Power Factor0.5 with maximum load
Product Configuration Typerelay configuration
Range Of ProductHarmony Solid State Relays
ReturnabilityYes
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint64 kg CO2 eq.
X Product Configuration Typerelay configuration
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh122.64
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal95.4 mm
Dv/Dt500 V/µs off-state at maximum rated voltage
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1200.08
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]152.6
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-80 °C, -20-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 64.0001224691
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-100 °C, -40-100 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1508007_V3
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1508007_V3
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typemodular DIN rail relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Output Switching Mode
- zero voltage switching
- Solid State Output Type
- zero voltage switching
Output Voltage48...600 V AC
Input Attributes
- Input Current Limits
- 6-10 mA
Overview Attributes
- Device Presentation
- complete product
