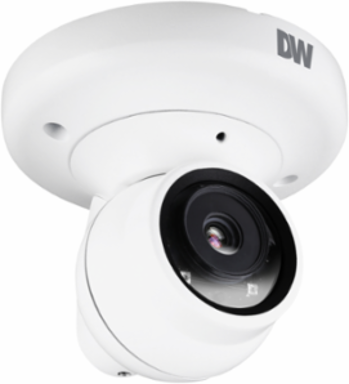

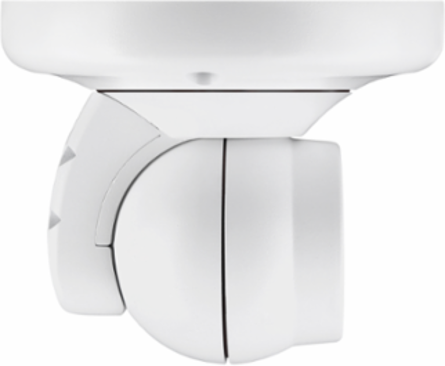

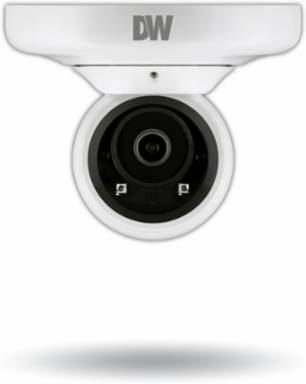

Digital Watchdog DWC-VA553WTIR 5MP Vandal Ball Camera with 4.0mm Fixed Lens, IP67, IK 10 Rated
- MPN: DWC-VA553WTIR
- UPC: 812226031139
- PPN: DWD-DWC-VA553WTIR
CAD
$354.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Experience unparalleled surveillance capabilities with the Star-Light Plus™ UHDoC® 5MP vandal ball camera from Digital Watchdog. Engineered for resilience, this camera features an IK 10-rated impact-resistant design and an IP67 rating, ensuring it remains operational in various environmental conditions while providing exceptional image quality. With a 4.0mm fixed lens and advanced Star-Light Plus™ technology, it delivers vibrant color images even in near-total darkness, making it an ideal choice for comprehensive security monitoring.
The camera boasts a remarkable resolution of 2592 x 1944 (5MP) and incorporates true wide dynamic range (WDR) technology for superior performance in challenging lighting situations. Additionally, its smart digital noise reduction and auto white balance features enhance image clarity, while the intelligent Smart IR™ ensures effective night vision up to 70 feet. With easy installation options and robust built-in features such as programmable privacy zones and motion detection, this camera is designed to meet the demands of modern surveillance needs.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 4.0mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 70' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP67 rated
- Other certifications
- FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK 10-rated impact-resistant
MECHANICAL
- Material
- Aluminum vandal ball housing
- Weight
- 1.16 lbs (0.53kg)
Dimensions4.92" x 4.05" (125 x 103mm; )
ELECTRICAL
- Power requirement
- DC12V only
OPERATIONAL
- Shutter mode
- Auto
- Backlight
- Yes
- Wide dynamic range (WDR)
- True WDR, off, on
- Smart DNR™ 3D digital noise reduction
- 3D/2D DNR
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- Max 72dB
- Privacy zones
- Yes
- Gamma
- 0.45
- RS485 / UTP built-in
- UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off – x32
Wide dynamic range (WDR) dB120dB
White balanceYes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes
LENS
- Focal length
- 4.0mm
- Field of view (FoV)
- 82°
Lens typeFixed lens
IR distance70ft range
- Image sensor
- 5MP 1/2.8" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Resolution
- 2592 x 1944 (5MP)
- Video output
- HD-Analog and HD-TVI - 5MP/1944p @ 20fps and 12.5fps; HD-Analog, HD-TVI and HD-CVI - 4MP/1440p @ 30fps
Active pixels2608 (H) x 1960 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
