Digital Watchdog

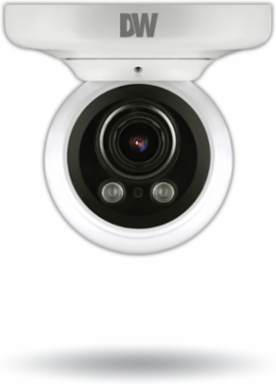

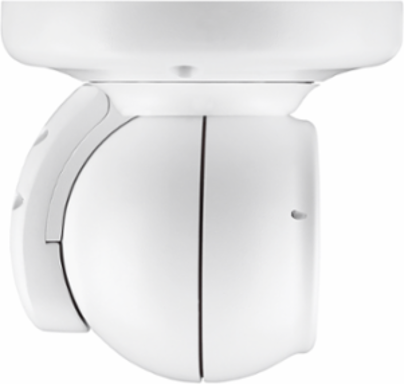

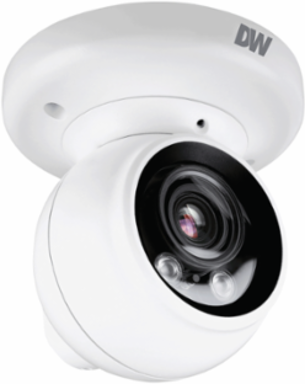

Digital Watchdog DWC-VA583WTIR 5MP Vandal Ball Camera with 2.7-13.5mm Varifocal Lens, IP67 Rated

5MP Vandal Ball Camera with 2.7-13.5mm Varifocal Lens, IP67 Rated
5MP Vandal Ball Camera with 2.7-13.5mm Varifocal Lens, IP67 Rated
5MP Vandal Ball Camera with 2.7-13.5mm Varifocal Lens, IP67 Rated
  • MPN: DWC-VA583WTIR
  • PPN: DWD-DWC-VA583WTIR

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$453.28/ EA

Description

Experience unparalleled surveillance capabilities with the Star-Light Plus™ vandal ball camera from Digital Watchdog. Engineered with a robust 5MP 1/2.8" CMOS image sensor, this camera excels in delivering stunning high-resolution imagery even in challenging lighting conditions, thanks to its innovative Star-Light Plus™ technology that allows for color capture in near-total darkness. The versatile 2.7~13.5mm vari-focal p-iris lens features motorized zoom and auto-focus, ensuring that you can easily adjust the field of view and focus on critical areas of interest. Designed to withstand the rigors of outdoor environments, this camera boasts an IK 10-rated impact-resistant housing and an IP67 rating for dust and water resistance. With features like true wide dynamic range (WDR), Smart DNR™ 3D digital noise reduction, and advanced motion detection, it provides clear and reliable footage under various conditions. The camera also supports universal HD over Coax® technology, making it compatible with HD-Analog, HD-TVI, and HD-CVI systems, ensuring seamless integration into your existing security setup. Ideal for both commercial and residential applications, this camera is backed by a 5-year warranty, affirming its quality and durability.

Features

  • Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/2.8" image sensor
  • 5MP at 20fps, 4MP at real-time 30fps
  • 2.7~13.5mm vari-focal motorized zoom p-iris lens with auto-focus
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • 80' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Auto-sensing 24VAC/12VDC with line lock
  • Easy icon-driven OSD menu with built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • UL listed
  • NDAA compliant
  • IP67 dust-tight and water-proof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty

Specifications

ENVIRONMENTAL

Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
IP rating
IP67 rated
Other certifications
FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK 10-rated impact-resistant

MECHANICAL

Material
Aluminum vandal ball housing
Weight
1.58 lbs (0.72kg)
Dimensions4.92" x 4.8" (125 x 122mm; )

ELECTRICAL

Power requirement
DC12V / AC24V dual-voltage

OPERATIONAL

Shutter mode
Auto
Backlight
Yes
Wide dynamic range (WDR)
True WDR, off, on
Smart DNR™ 3D digital noise reduction
3D/2D DNR
Day / night
Auto, day (color), night (B/W)
Auto gain control
Max 72dB
Privacy zones
Yes
Gamma
0.45
RS485 / UTP built-in
UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off – x32
Wide dynamic range (WDR) dB120dB
White balanceYes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes

LENS

Focal length
2.7 ~ 13.5mm
Field of view (FoV)
85 - 32°
Lens typeVari-focal p-iris lens with motorized zoom and auto-focus
IR distance80ft range


Image sensor
5MP 1/2.8" CMOS
Scanning system
Progressive scan
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
Resolution
2592 x 1944 (5MP)
Video output
HD-Analog and HD-TVI - 5MP/1944p @ 20fps and 12.5fps; HD-Analog, HD-TVI and HD-CVI - 4MP/1440p @ 30fps
Active pixels2608 (H) x 1960 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
