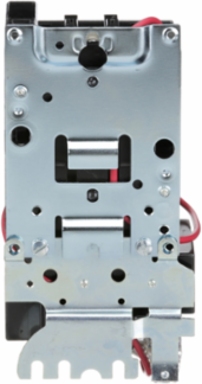

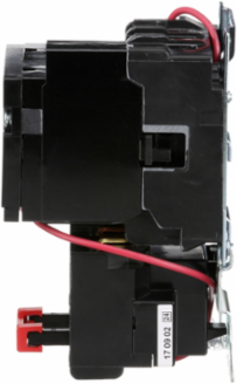

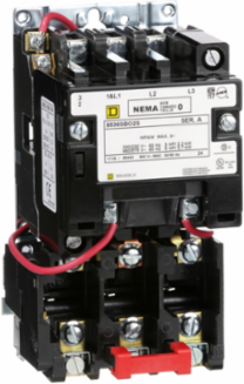

Square D 8536SBO2V01S NEMA Size 0 Motor Starter, 18A, 5HP, 24V AC Coil, 3 Phase
- MPN: 8536SBO2V01S
- UPC: 785901455981
- PPN: SCH-8536SBO2V01S
CAD
$914.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Features
- Engineered specifically for heavy-duty industrial automation, this NEMA Size 0 magnetic starter safely manages line-rated currents up to 18A. It delivers dependable, full-voltage non-reversing control for AC squirrel cage motors, supporting up to 3 HP at 200/230V AC or up to 5 HP at 460/575V AC.
- Equipped with a 24V AC (60 Hz) operating coil pre-wired for a separate control circuit, this unit allows you to isolate your primary motor voltage from your control logic. This design ensures seamless compatibility with low-voltage step-down transformers, pilot devices, and PLCs while maximizing operator safety at the control panel.
- This 3-pole starter utilizes a highly reliable melting alloy thermal overload relay system designed for precision motor circuit protection.
- Featuring a compact, open-type construction measuring 6.77" H x 3.50" W x 4.22" D, this device eliminates unnecessary bulk for space-constrained installations. It is designed to mount directly onto custom sub-panels or within larger existing NEMA-rated enclosures, providing an efficient footprint for multi-starter control assemblies.
- Built with robust screw clamp terminals, this starter provides high-torque wire retention capable of maintaining low contact resistance under heavy vibration. This eliminates the risk of intermittent faults, overheating, or loose connections that frequently plague lower-tier IEC contactors in high-vibration machinery applications.
- Fully UL listed, CSA certified, and NEMA compliant, this Type S starter carries a 5 kA Short Circuit Current Rating (SCCR) to ensure adherence to strict UL508A electrical codes. The modular chassis design supports field-convertible upgrades, allowing maintenance teams to easily snap on external auxiliary contacts (such as 9999SX6 or 9999SX7) or transient suppression modules to match changing operational requirements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ
- Depth
- 107 mm
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Hp
- 3 HP 200 V AC, 3 HP 230 V AC5 HP 460 V AC, 5 HP 575 V AC
- Line Rated Current
- 18 A
Control Circuitseparate control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA, NEMA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 3.1544726036337374
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 13.011061588751433
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- no control units
- Energy Efficiency Optimized
- False
- Motor Starter Type
- non reversing
- Phase
- 3 phase
- Product Or Component Type
- motor starter
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 402 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 73
- Width Nominal
- 89 mm
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 1.823 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]1.5134180356778697, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.19702127563895888, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 384 kg CO2 eq., 1384.16969812126
Local Publishable Date2025-11-18
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Control Circuitseparate control circuit
Electrical Connectionscrew clamp terminals
Local Signallingwithout pilot light
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductS
Software Versionv6.2.4
Thermal Overload Typemelting alloy 3
Pep CodeENVPEP2506062EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal172 mm
[Uc] Control Circuit Voltage24 V AC 60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536504000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2506062EN
- Nema Degree Of Protection
- not rated (open device)
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint1402.045671624962
Eu Rohs DirectiveCompliant
Nema Size0
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2506062EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Range Of Product
- S
Product Or Component Typemotor starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
