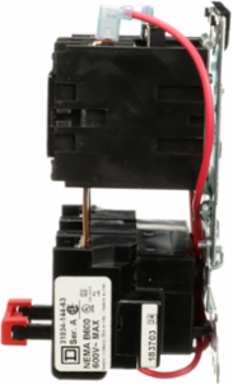

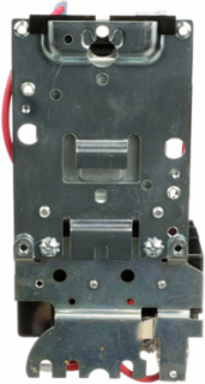

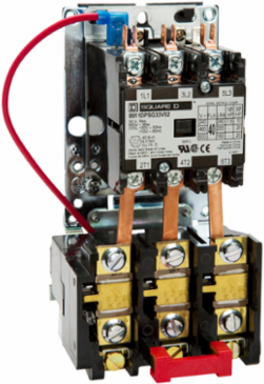

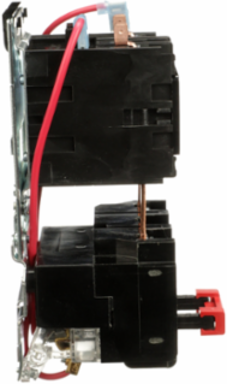

Square D 8911DPSO33V09 NEMA Starter 30A, 20HP at 600VAC, 3 Phase, Melting Alloy
- MPN: 8911DPSO33V09
- UPC: 785901748939
- PPN: SCH-8911DPSO33V09
CAD
$358.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This NEMA starter from Schneider Electric is engineered for robust performance in a variety of industrial applications. With a capacity of 30A and a capability of handling up to 20HP at 600VAC, it excels in efficient motor control for three-phase systems. The use of melting alloy construction enhances its reliability, ensuring protection and longevity in demanding environments. Ideal for automation and control setups, this starter serves as a vital component in enhancing operational efficiency and safeguarding your equipment.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Horsepower Rating
- 2 Hp 115 V AC 1 phase, 5 Hp 230 V AC 1 phase, 10 Hp 230 V AC 3 phases, 15 Hp 460 V AC 3 phases, 20 Hp 575 V AC 3 phases
- Phase
- 3 phases
- Number of Poles
- 3P
- Number of Thermal Units Required
- 3
- Product Type
- Definite Purpose Starter
- Mercury Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
- Warranty
- 18 months
Voltage600 V AC
Control Circuit Voltage220 V AC 50 Hz, 208-240 V AC 60 Hz
Locked Rotor Amperage180 A 230 V AC, 150 A 460 V AC, 120 A 575 V AC
Thermal Overload TypeMelting alloy
Enclosure RatingOpen device
Range of ProductDPS
RoHS ComplianceCompliant with Exemptions
China RoHSOut of scope, substance declared
Country of OriginChina
