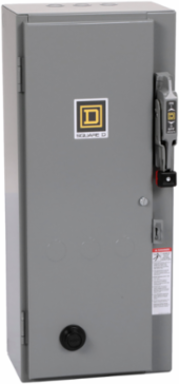

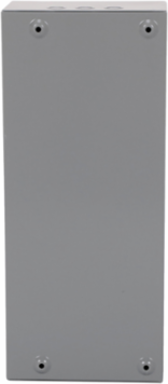

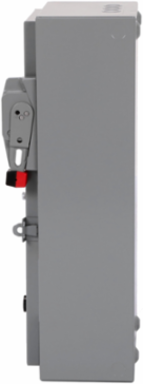

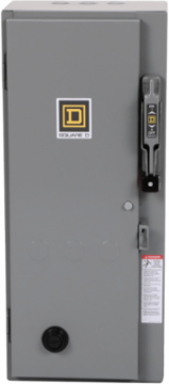

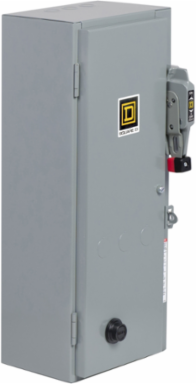

Square D 8538SBG13V02S NEMA Combination Starter, Size 0, 30A Fusible Disconnect, 5HP at 600VAC

MPN: 8538SBG13V02S
UPC: 785901748243
PPN: SCH-8538SBG13V02S

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2102.97/ EA

Qty:

Loading add to cart quantity...

Description

This NEMA combination starter from Schneider Electric represents a robust solution for motor control, specifically designed for efficiency and safety in industrial automation applications. With a size 0 configuration and a 30A fusible disconnect, it effectively manages power for motors up to 5HP at 600VAC, ensuring reliable operation even in demanding environments. Its durability and reliable design make it an essential component for enhancing control and protection in various automated systems. This combination starter exemplifies the high quality and performance standards synonymous with Schneider Electric, allowing for seamless integration into your operations.

Specifications

Motor Power Hp: 5 Hp 460 V AC, 3 phases; 5 Hp 575 V AC, 3 phases

Poles: 3P

Motor Starter Type: Non reversing

NEMA Size: 0

Thermal Overload Type: Melting alloy 3

Range of Product: S

China RoHS: Out of China RoHS scope

Reach Regulation: Contains SVHC above threshold

Local Signalling: No indicator

Country of Origin: MX

Rated Operational Voltage600 V AC

Control Circuit Voltage110 V AC 50 Hz, 120 V AC 60 Hz

Disconnector Device TypeFusible disconnect switch H, 30 A

Enclosure TypeNEMA 1 painted sheet steel with external reset

Control CircuitSeparate control circuit

Product TypeCombination Starter

EU RoHSNot compliant

Auxiliary Contact CompositionWithout

Control TypeNo control units
