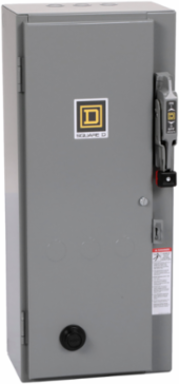

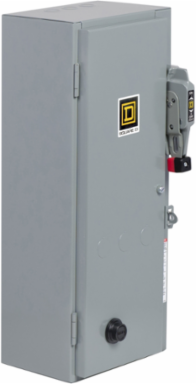

Square D 8538SCG12V02S NEMA Combination Starter, Size 1, 30A Fusible Disconnect, 5HP, 3 Phase, NEMA 1
- MPN: 8538SCG12V02S
- UPC: 785901748298
- PPN: SCH-8538SCG12V02S
CAD
$2413.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Thermal units are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over-currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses or circuit breakers. Class 20 thermal units respond to overload current conditions according to trip curves. These thermal units will trip in 20 seconds or less on overload conditions. These thermal units have a one piece construction. The motor current passes through a small heater winding within these thermal units. Under overload conditions, the heat causes a special solder to melt allowing a ratchet wheel to spin free thus opening the control circuit contacts and opening the motor contacts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ
ComplianceTAA Compliant
Complementary Attributes
- Maximum Horse Power Rating
- 5-5 hp 200 V AC, 3 phase, 5-5 hp 230 V AC, 3 phase
Control Circuitseparate control circuit
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 23 kg CO2 eq., 23.454561487558273
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 94 kg CO2 eq., 93.59394038387828
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Control Circuit
- separate control circuit
- Disconnector Device Type
- fusible disconnect switch H, 30 A
- Local Signalling
- no indicator
- Number Of Poles
- 3P
- Product Or Component Type
- Combination Starter
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 609 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U and 3 pole 1 non-reversing combination motor controller with a fussed disconnect and solid state overload, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 82
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]4.614264892256271, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.3327446381554617, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]485 kg CO2 eq., 484.6077813342736
Local Publishable Date2025-11-19
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2507019EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typeno control units
Energy Efficiency OptimizedFalse
Motor Starter Typenon reversing
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductS
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy 3
Pep CodeENVPEP2507019EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)15.967 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 608.603292736122
- Environmental Disclosure
- ENVPEP2507019EN
- Nema Degree Of Protection
- NEMA 1 painted sheet steel with external reset
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507019EN
Eu Rohs DirectiveCompliant By Exemption
Nema Size1
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507019EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- Combination Starter
Range Of ProductS
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
