Square D

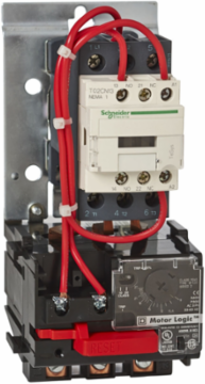

Square D T36CN13G7 Starter, Tesys N Starters, non reversing, 3P, 3phase, 27A, 600VAC, NEMA size 2, 120 VAC 60 Hz coil

Starter, Tesys N Starters, non reversing, 3P, 3phase, 27A, 600VAC, NEMA size 2, 120 VAC 60 Hz coil
  • MPN: T36CN13G7
  • UPC: 785901958109
  • PPN: SCH-T36CN13G7

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1027.57/ EA

Description

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 2 starter has a 45 continuous current rating. It also has ratings of 10 HP at 200, 15 HP at 230 Vac and 25 HP at 460 and 575 VAC. A Motor Logic overload relay is used on this starter. To maximize convenience and to reduce inventory the TeSys N starter uses the common TeSys accessories. The starter has a 120 VAC replaceable coil. Starter is UL listed and CSA Certified.

Specifications

Specifications

Product Certifications
UL listed || CSA
Thermal Overload Type
solid state Motor Logic class 10/20 9-27 A
Auxiliary Contact Composition
1 NO + 1 NC
Range Of Product
TeSys N
Poles Description
3P
[In] Rated Current
27 A
Control Circuit
common control circuit
Network Number Of Phases
3 phases
Motor Starter Typenon reversing
[Uc] Control Circuit Voltage120 V AC
Nema Degree Of Protectionnot rated (open device)
Nema Size1
Rated Power In Hp7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
Electrical Connectionscrew clamp terminals
Product Or Component Typestarter
[Ue] Rated Operational Voltage600 V AC

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Reach Free Of SvhcYes
