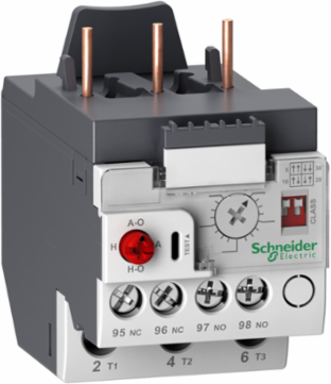

Schneider Electric LR9D32 TeSys LRD Electronic Overload Relay 6.4-32A 3 Phase 690V
- MPN: LR9D32
- PPN: SCH-LR9D32
CAD
$260.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LR9D electronic overload relay, 32A/690V, thermal setting range 6.4-32A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 3-15kW at 400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), RoHs/Reach.
Features
- Featuring a highly precise adjustable setting range of 6.4A to 32A, this electronic thermal overload relay effortlessly matches a wide variety of 3-phase motors up to 15 kW at 400V. This wide dial adjustment means you can inventory a single model to safeguard multiple motor configurations, reducing overhead and eliminating compatibility guesswork.
- Engineered for seamless integration, the LR9D32 plugs directly into the bottom terminals of 3-pole TeSys Deca contactors, specifically models LC1D09 through LC1D38. This clean, direct-mount setup completely cuts down on extra wiring and panel space requirements, allowing for an efficient, rapid installation without the need for additional mounting accessories.
- This solid-state overload relay features adjustable dipswitches that let you choose between Tripping Classes 5, 10, 20, and 30 to accommodate everything from standard applications to heavy-load, high-torque industrial starts. By tailoring the trip curve directly to your application's demand, you prevent nuisance tripping during initial startup while ensuring robust protection under sustained fault conditions.
- Equipped with built-in auxiliary contacts (1NO + 1NC), an integrated flag indicator, and dedicated buttons for test, stop, and manual or automatic reset selection, your maintenance team can diagnose faults at a glance. To ensure setting integrity, a clear, lockable transparent cover seals the control panel from accidental tampering or unauthorized adjustments.
- Built to meet rigorous global standards, the LR9D32 is multi-certified under CSA C22.2, UL 60947, IEC, and CCC, while maintaining full RoHS and REACH environmental compliance. This absolute adherence to strict electrical safety regulations guarantees that your control panel pass municipal inspections and operate safely in demanding industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth79.9 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 5 A gG for signalling circuit, 5 A BS for signalling circuit
- Electromagnetic Compatibility
- surge withstand 2 kV common mode IEC 61000-4-5, resistance to electrostatic discharge 8 kV IEC 61000-4-2, immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3immunity to fast transients 2 kV IEC 61000-4-4
- Certificate Agency
- IECEE CB Scheme, UL, CSA, CCC
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Dielectric Strength
- 6 kV 50 Hz IEC 60255-5
- Mechanical Robustness
- vibrations 10...150 Hz6 Gn IEC 60068-2-6shocks 11 ms15 gn IEC 60068-2-7
- Power Consumption In W
- 300 mW
- Product Name
- TeSys LRD
- Range
- TeSys
- Returnability
- Yes
- Thermal Overload Class
- class 5…30
- Tightening Torque
- control circuit 0.8 N.m screw clamp terminalspower circuit 3.1 N.m screw clamp terminals
- Tripping Threshold
- 1.25 In IEC 60947-4-1
- Height Nominal
- 72.5 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- [Ui] Rated Insulation Voltage
- power circuit 1000 Vsignalling circuit 690 V
- Connections - Terminals
- control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable endpower circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end
- Package Weight(Lbs)
- 220.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Control TypeRed push-button stop and manual reset, White 2 microswitches adjustable trip classRed knob automatic reset, Gray dial full-load current adjustment
Mounting Supportunder contactorplate, with specific accessories, rail, with specific accessories
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2020
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Short NameLR9D
Energy Efficiency OptimizedFalse
Phase Failure Sensitivityphase difference > 40% 3-3 s IEC 60947-4-1
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeelectronic thermal overload relay
Relay Applicationmotor protection
Sustainable PackagingNo
Thermal Protection Adjustment Range6.4-32 A
Time Range1.5...4 min - automatic reset time
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal45 mm
[Ue] Rated Operational Voltage690 V power circuit660 V signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -55-80 °C, -55-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- No
Ambient Air Temperature For Operation-25-70 °C IEC 60255-8, -25-70 °C IEC 60255-8-25-70 °C IEC 60255-8, -25-70 °C IEC 60255-8
Product CompatibilityLC1D09, LC1D25, LC1D32, LC1D38, LC1D12, LC1D18
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- electronic thermal overload relay
ETIM
- ETIM 8
- EC001080
ETIM 9EC001080
Accessories
