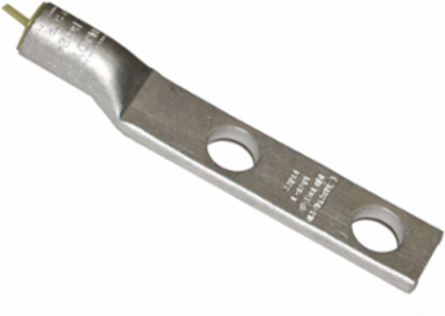

Burndy YAS26R2N Straight Stacking Lug, Al Tubing, 2-NEMA Holes, 2/0 AWG Cu/Al,ACSR, Gray, 0.56" Hole Dia.
- MPN: YAS26R2N
- UPC: 781810050248
- PPN: BUR-000127
- UNSPSC: 39121405
CAD
$112.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Stacking Lug, Al Tubing, 2-NEMA Holes, 2/0 AWG Cu/Al,ACSR, Gray, 0.56" Hole Dia.
Features
- Straight Stacking Lug, Al Tubing
- 2-NEMA Holes
- 2/0 AWG Cu/Al,ACSR
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Conductor - ACSR Str Size Range | 2/0 (6/1) Quail AWG |
| Conductor - AL Str Size Range | 2/0 AWG |
| Conductor - Copper Str Size Range | 2/0 AWG |
| Dimension - D inch | 3.76 in |
| Dimension - L Length Overall mm | 148 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Strip Length inch | 1-19/32 in |
| Feature - Barrel Style | Tapered |
| Physical Attribute - Number of Holes | 2 |
| Plated | N |
| Product Type | Compression |
| Trade Name | HYLUG™ |
| Certification Agency | Proposition 65 |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Sub Class Code | B35B93F |
| UL Listed | No |
| Material | Aluminum |
| BOX SIZE | 5.125x7.373x6.438 (in) |
| Carton - Number of Sub Packs | 20 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810050248 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810050249 |
| Package - Total Units | 20 EA |
| Pallet - GTIN - Package | 70781810050247 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 3359319104 |
| Conductor - ACSR Str Size | 2/0 (6/1) Quail AWG |
|---|---|
| Conductor - AL Str Size | 2/0 AWG |
| Conductor - Copper Str Size | 2/0 AWG |
| Dimension - B Length inch | 1.47 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Length Overall inch | 5.83 in |
| Dimension - Pad Width inch | 1.24 in |
| Dimension - Z inch | 1.38 in |
| Physical Attribute - Number of Crimps Required | 1 |
| Physical Attribute - Tongue Angle | Straight |
| Plating Type | Unplated |
| Standards - RoHS Compliance Status | CM |
| Connector Type | Terminal |
| Class Code | B35 |
| Harmonization Code | 8535908020 |
| Lead Time | 12 wk |
| Die Index | 249;840;CSA24 |
| Color Code | Gray |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.600 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 |
| Package - GTIN - Package | 30781810050249 |
| Package Quantity | 20 EA |
| Pallet Height | 46.750 in |
| Pallet Weight | 1406.600 lb. |
| Standard Package Quantity | 20 |
Certifications
| CSA Approved | No |
|---|---|
| ETL | No |
| cULus | No |
|---|---|
| UL Recognized | No |
