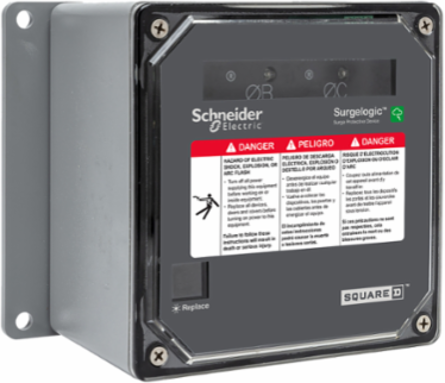

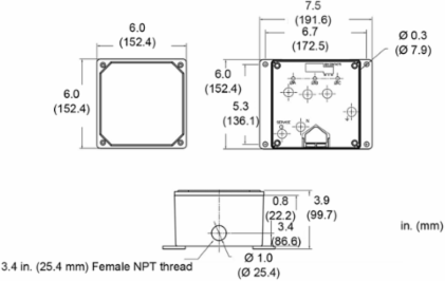

Square D EMB32 Surge protective device, Surgelogic, EMB, 200kA, 240/120V HLD, 3 phase, 4 wire, SPD type 1, NEMA 4X
- MPN: EMB32
- UPC: 047569001581
- PPN: SCH-EMB32
CAD
$3427.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surgelogic™ Type EMB systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 200,000 Amps and Indoor/Outdoor rated. Designed for 240/120VAC three phase High-leg delta systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth102 mm
Important Information Attributes
- Noise Level
- -27 dB, -27 dB
- Certificate Agency
- UL 1449:ed. 5, CSA C22.2 No 269.2, UL 96A
- Carbon Footprint Of The Distribution Phase [A4]
- 0.19756674627636586, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0018698872714325936, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 845 kg CO2 eq., 845.1633501564307
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2508025EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Enclosure Material
- non-metallic
- Frequency Measurement Range
- 47-63 Hz
- Nominal Discharge Current
- 20 kA
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Surgelogic
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 865 kg CO2 eq.
- Pep Code
- ENVPEP2508025EN
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 69
- Width Nominal
- 152 mm
- [Ue] Rated Operational Voltage
- 240/120 V HLD AC
- Short-circuit Protection
- 200 kA
- Package Weight(Lbs)
- 1.542 kg
- Warranty (In Months)
- 18
Provided Equipmentalarm enable/disable switch, dry contacts
[Uc] Maximum Continuous Operating Voltage150 V, 320 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.77525581188107
Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 17.20435872544795
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameEMB
Energy Efficiency OptimizedFalse
Local Signallingstatus LED green per phase normal operationstatus LED red per phase fault
Phase3 phase
Product Or Component Typesurge protection device
ReturnabilityYes
Sustainable PackagingNo
Wiring Configuration4-wire
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1752
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal152 mm
[Iimp] Impulse Current20 kA
Connections - Terminalslugs terminal 14 AWG...8 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-60 °C, -40-60 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 865.3424013273076
- Environmental Disclosure
- ENVPEP2508025EN
- Nema Degree Of Protection
- NEMA 4X
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2508025EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-65 °C, -20-65 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2508025EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...12000 ft
Packaging Without Single Use PlasticNo
Relative Humidity0-95 %
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Provided Equipment
- alarm enable/disable switch, dry contacts
- Product Or Component Type
- surge protection device
Phase3 phase
Range Of ProductSurgelogic
Surge Protection And Filtering Attributes
- Surge Current
- 200 kA
Input Attributes
- Input Voltage
- 1200 V L - G, 700 V L-N, 1200 V L-N, 700 V L - G, 700 V N - G, 1200 V L-L, 2000 V L-L
