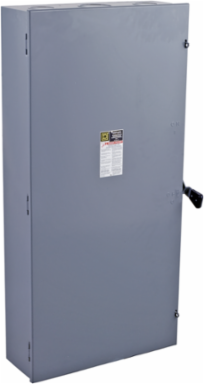

Square D T327N General Duty Safety Switch 800A 3-Pole Fusible 100hp 240VAC NEMA 1
- MPN: T327N
- UPC: 785901029984
- PPN: SCH-T327N
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 800A with a NEMA 1 degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 3/0 /500 kcmil, aluminium/copper. This switch is certified to UL standards Dinemsions for this product are 45.12 in (H), 24.88 in (W), 8.88 in (D). General Duty safety switchs come with an 18 months warranty.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- general duty
- Nema Degree Of Protection
- NEMA 1
- Product Or Component Type
- Single Throw Safety Switch
- Device Composition
- neutral (factory installed)
- Device Application
- residential
- [Ue] Rated Operational Voltage
- 240 V AC
Disconnector Device Typefusible disconnect switch
[In] Rated Current800 A
Motor Power Hp100 hp at 240 V AC 60 Hz for 3 phases motors
Network Number Of Phases3 phases
Number Of Poles3
Complementary
- Height
- 45.12 in
- Tightening Torque
- 300-300 lbf.in AWG 3/0...500 kcmil)
- Electrical Connection
- lugs
- Wiring Configuration
- 4-wire (3P + E)
- Depth
- 8.88 in
- Net Weight
- 59.4 kg
Device Mountingsurface
Fuse TypeT
Awg GaugeAWG 3/0...500 kcmil aluminum/copper
Width24.88 in
Short-Circuit Current100 kA T
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1405016EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
