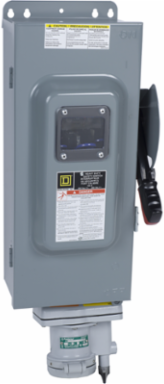

Square D H363AWAVW Safety switch, heavy duty, fusible, 100A, 600VAC, 600VDC, 3 poles, 75hp, NEMA 12K, Appleton, view window
Square D H363AWAVW Safety switch, heavy duty, fusible, 100A, 600VAC, 600VDC, 3 poles, 75hp, NEMA 12K, Appleton, view window
- MPN: H363AWAVW
- UPC: 785901351931
- PPN: SCH-H363AWAVW
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Safety switch, heavy duty, fusible, 100A, 600VAC, 600VDC, 3 poles, 75hp, NEMA 12K, Appleton, view window
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Specifications
- Disconnector Device Type
- fusible disconnect
- [In] Rated Current
- 100 A
- Network Number Of Phases
- 3 phases
- [Ue] Rated Operational Voltage
- 600 V AC || 250 V DC
Nema Degree Of ProtectionNEMA 12K
Product Or Component TypeReceptacle Switch
Number Of Poles3
Product Destinationplug ACP1034CD Appleton Powertite
Complementary
- Height
- 20.5 in
- Tightening Torque
- 50-50 lbf.in AWG 3...AWG 1) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in AWG 8) || 35-35 lbf.in AWG 14...AWG 10)
- Awg Gauge
- AWG 12...AWG 1/0 aluminum || AWG 14...AWG 1/0 copper
- Width
- 10.5 in
Device Mountingsurface
Electrical Connectionreceptacle
Wiring Configuration4-wire || without neutral
Depth7 in
Environment
- Product Certifications
- UL listed
