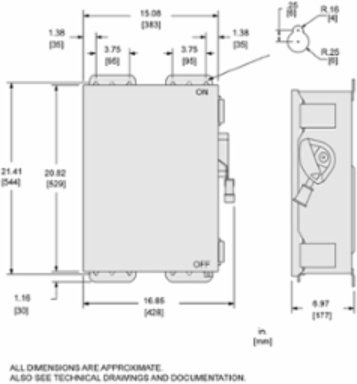

Square D H461DS Safety switch, heavy duty, fusible, 30A, 4 pole, 25hp, 600VAC/DC, NEMA 4, 4X, 5, 304 steel
- MPN: H461DS
- UPC: 785901369387
- PPN: SCH-H461DS
CAD
$3111.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth6.97 in
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Awg Gauge
- AWG 12...AWG 6 aluminium, AWG 14...AWG 6 copper
- Motor Power Hp
- 7.5 hp at 480 V AC 50-60 Hz for 2 phases motors, 20 hp at 480 V AC 50-60 Hz for 2 phases motors, 10 hp at 600 V AC 50-60 Hz for 2 phases motors, 25 hp at 600 V AC 50-60 Hz for 2 phases motors, 5 hp at 250 V DC, 15 hp at 600 V DC
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 4.588433956791417, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.6132615881553192, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 4 kg CO2 eq., 4.330777462837799
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- heavy application
- Disconnector Device Type
- fusible disconnect
- Number Of Poles
- 4
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2305006EN
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 20.82 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Package Weight(Lbs)
- 15.422 kg
- Warranty (In Months)
- 18
Fuse TypeH or K, R or J
Tightening Torque45-45 lbf.in 13.3-13.3 mm² (AWG 6), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Short-circuit Current10 kA for H or K, 200 kA for R or J
Carbon Footprint Of The End-of-life Phase [C1 To C4]35 kg CO2 eq., 35.47388926341059
Carbon Footprint Of The Manufacturing Phase [A1 To A3]84 kg CO2 eq., 84.12763249297441
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Device Compositionnone
Electrical Connectionlugs
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint130 kg CO2 eq.
Wiring Configuration4-wire
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential, In %89
Width Nominal16.85 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 130.13399476416956
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2305006EN
Nema Degree Of ProtectionNEMA 4X/5 stainless steel 304
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
