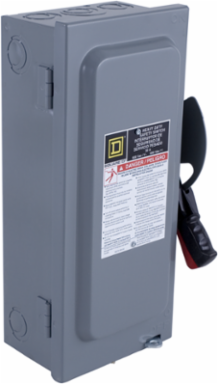

Square D H461 Heavy Duty Safety Switch 600V 30A 4P NEMA1 Dimensions 20.5x16.13x6.85 Inch
- MPN: H461
- UPC: 785901868330
- PPN: SCH-H461
CAD
$986.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This is a Single Throw Safety Switch. This safety switch has a rated current of 30A and is 4 pole. This safety switch has a rated operational voltage of at200 kA and 600 VAC/DC at 10 kA. With a motor power of 7.5 hp. This heavy duty disconnect is surface mounted. This product complies with UL listed file E2875 standards. This product has a NEMA 1 degree of protection. and os made of steel. Dimensions for this disconnect are 20.5 in (H), 16.13 in (W), 6.85 in (D).
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 1 steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 4
Disconnector Device Typefusible disconnect
[In] Rated Current30 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 20.5 in
- Tightening Torque
- 45-45 lbf.in 13.3-13.3 mm² AWG 6) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 35-35 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Electrical Connection
- lugs
- Width
- 16.13 in
- Depth
- 6.85 in
- Short-Circuit Current
- 10 kA for H or K || 200 kA for R or J
Device Mountingsurface
Fuse TypeH or K || R or J
Awg GaugeAWG 12...AWG 6 aluminum || AWG 14...AWG 6 copper
Wiring Configuration4-wire
Net Weight13 kg
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
