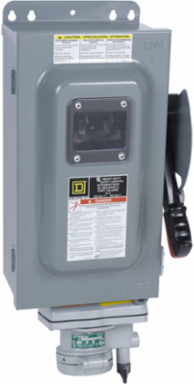

Square D H362AWAVW Heavy Duty Fusible Safety Switch 60A 600V 3-Pole NEMA 12K
- MPN: H362AWAVW
- UPC: 785901351924
- PPN: SCH-H362AWAVW
CAD
$3936.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy duty safety switches are designed to provide exceptional electrical protection. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 60A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 30 HP at 480 VAC three phase and 50 HP at 600 VAC three phase. This device has enclosure rating of NEMA 12K. It is UL listed with the file E2875. This switch is furnished with factory installed Appleton Powertite receptacle. The switch is designated with the suffix 'VW', indicating that it is equipped with a viewing window.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth7 in
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 15 hp at 480 V AC 50-60 Hz for 3 phase motors, 30 hp at 480 V AC 50-60 Hz for 3 phase motors, 15 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 600 V AC 50-60 Hz for 3 phase motors, 10 hp at 250 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 2.2942169783957085, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.8066307940776596, 0.8 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 13 kg CO2 eq., 12.992332388513393
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Disconnector Device Type
- fusible disconnect
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- Receptacle Switch
- Software Version
- v5.9.4
- Tightening Torque
- 45-45 lbf.in (6 AWG...4 AWG)40-40 lbf.in (8 AWG)35-35 lbf.in (14 AWG...10 AWG)
- Pep Code
- ENVPEP2305006EN
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 16.5 in
- Certificate Agency
- UL Listed
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Wiring Configuration4-wire, without neutral
Carbon Footprint Of The End-of-life Phase [C1 To C4]18 kg CO2 eq., 17.736944631705295
Carbon Footprint Of The Manufacturing Phase [A1 To A3]42 kg CO2 eq., 42.06381624648721
Local Data StatusPublishable
Return IndicatorY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge12 AWG...2 AWG aluminium14 AWG...2 AWG copper
Electrical Connectionreceptacle
Number Of Poles3
Product Destinationplug ACP6034BC Appleton Powertite
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint76 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %89
Width Nominal10.5 in
[Ue] Rated Operational Voltage600 V AC250 V DC
Package Weight(Lbs)7.711 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 75.89394103917927
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2305006EN
Nema Degree Of ProtectionNEMA 12K
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Receptacle Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
