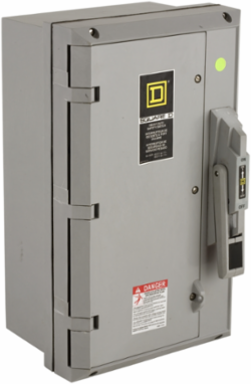

Square D H361DX Heavy Duty Fusible Disconnect Switch 30A 3P NEMA 4X, 600V AC/DC

MPN: H361DX
UPC: 785901011040
PPN: SCH-H361DX
UNSPSC: 39122205

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for robust performance, the Heavy Duty Fusible Disconnect Switch from Schneider Electric is designed to handle demanding applications with ease. This 30A, 3-pole switch is rated for operational voltages up to 600V AC/DC and features a NEMA 4X enclosure, ensuring reliable operation even in harsh environments. With a focus on safety and durability, this disconnect switch is UL listed and built to withstand short-circuit currents of up to 200 kA, making it an ideal choice for heavy-duty power distribution needs. Its surface mounting design and PVC-free construction further enhance its suitability for various industrial applications, providing peace of mind for operators and maintenance personnel alike.

Features

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
Designed to satisfy individual requirements for all customers
Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
All feature a quick-make, quick-break operating mechanism, a dual cover
Designed to have a mechanical endurance three times greater than NEMA standards

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

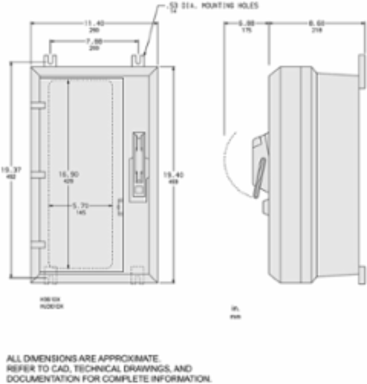

Depth	8.6 in

Weight	14606 g

Complementary Attributes

Line Rated Current	30 A

Ue Rated Operational Voltage	600 V AC/DC

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Fuse Type	H or K, R or J
Tightening Torque	45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG)
Carbon Footprint Of The End Of Life Phase C1 To C4	34 kg CO2 eq., 33.596915223795556
Carbon Footprint Of The Manufacturing Phase A1 To A3	80 kg CO2 eq., 79.67631955598392
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	heavy application
Disconnector Device Type	fusible disconnect
Energy Efficiency Optimized	False
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	122 kg CO2 eq.
Database Version	2022-01
Height Nominal	19.4 in
Certificate Agency	UL listed file E2875
Customs Code	8536509045
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Motor Power Hp	5 hp at 480 V AC 50-60 Hz for 3 phase motors, 15 hp at 480 V AC 50-60 Hz for 3 phase motors7.5 hp at 600 V AC 50-60 Hz for 3 phase motors, 20 hp at 600 V AC 50-60 Hz for 3 phase motors, 15 hp at 600 V DC
Carbon Footprint Of The Distribution Phase A4	4.345653376533227, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.5279016182464396, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	3 kg CO2 eq., 3.2480830971283483
Local Publishable Date	2025-11-13
Device Type	LV equipment - LV fuse - switch
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1904
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	12 AWG...6 AWG aluminium14 AWG...6 AWG copper
Device Composition	none
Electrical Connection	lugs
Number Of Poles	3
Product Or Component Type	Single Throw Safety Switch
Series Name	heavy duty
Sustainable Packaging	No

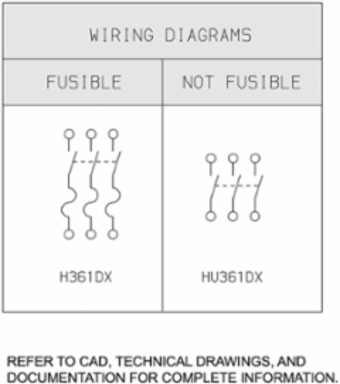

Wiring Configuration	3-wire (3P)
Data Source	extrapolated product
Width Nominal	11.4 in
Nbr. Of Units In Pkg.	1
Short Circuit Current	10 kA for H or K200 kA for R or J
Functional Unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
Functional Unit Unit	Unit
Recyclability Potential In %	89

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	122.39487287168748
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2305006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2305006EN
Nema Degree Of Protection	NEMA 4X Krydon - compression molded fiberglass reinforced polyester
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-06-06
Psr Version	PSR-0005-ed2-2016 03 29
