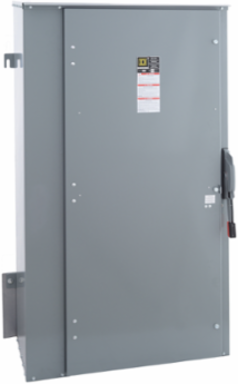

Square D HU368AWK Heavy Duty Safety Switch 600V AC/DC 1200A, NEMA 12, 3 Poles
- MPN: HU368AWK
- UPC: 785901163671
- PPN: SCH-HU368AWK
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust power management, this heavy-duty safety switch from Schneider Electric is rated for 600V AC/DC and offers a substantial 1200A capacity. Designed to support industrial applications, it features a NEMA 12 enclosure that ensures protection in environments where dust and moisture may be present. With three poles, it provides reliable disconnection of electrical circuits, enhancing both safety and operational efficiency within your power distribution system. This switch is an essential component for those seeking to safeguard their electrical systems while maintaining high-performance standards in demanding applications.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 1200 A
- Number of Poles
- 3
- Motor Power
- 50 Hp at 600 V AC 1-phase, 500 Hp at 600 V AC 3-phase, 50 Hp at 600 V DC
- Duty Rating
- Heavy duty
- Electrical Connection
- Lugs
- Wire Size Range
- AWG 3/0 to 750 kcmil copper or aluminum
- Dimensions
- 17.75 in x 36.62 in x 69.13 in
- NEMA Rating
- NEMA 3R/12 galvannealed steel
- RoHS Compliance
- EU RoHS Directive Compliant with Exemptions, China RoHS, RoHS exemption Yes
- Halogen Content
- Halogen free plastic parts
- Warranty
- 18 months
Voltage600 V AC/DC
Phase3 phases
Disconnector Device Typenon-fusible disconnect
Mounting TypeSurface
Wiring Configuration3-wire
Tightening Torque375 lbf.in (42.37 N.m)
Net Weight167.8 kg (370 lb)
UL CertificationUL Listed file E2875
PVC FreeYes
Mercury FreeYes
Country of OriginUS
