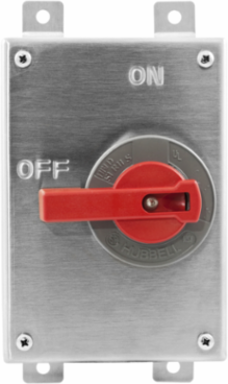

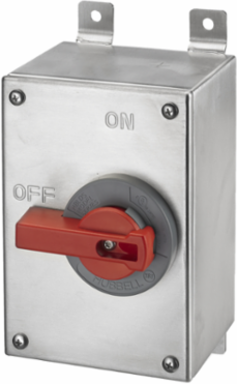

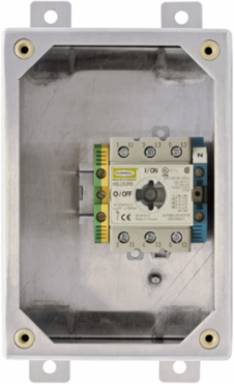

Hubbell Wiring Device-Kellems HBLDS3SS Industrial Disconnect Switch, 30A 600V AC, Three Pole, Stainless Steel, NEMA 4X
- MPN: HBLDS3SS
- UPC: 783585242736
- PPN: HBL-HBLDS3SS
- UNSPSC: 39122205
CAD
$1338.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Accepts up to 2 Auxiliary contacts
Specifications
Additional
- Amperage
- 30 A
- Poles
- Three
- Operating Temperature
- -40°C to 75°C maximum continuous
- Dimensions
- 8.38 in x 4.87 in x 5.39 in
- Length
- 8.38 in
- Height
- 5.39 in
- Material
- 304 Stainless Steel
- Enclosure Gasket Material
- Neoprene
- Auxiliary Contacts
- Accepts up to 2
- Certifications
- UL Listed, NSF Certified, RoHS Compliant
- Shape
- Square Top
Voltage600 V AC
Dielectric StrengthWithstands 3000 V AC minimum
Switch TypeDisconnect, Unfused
Size8.38 in x 4.87 in x 5.39 in
Width4.87 in
Mounting MethodFeet fixed
Handle MaterialValox®
StyleHeavy Duty; Replacement Switches
Enclosure RatingNEMA 4X, IP69k, Type 4X
Country of OriginPoland
