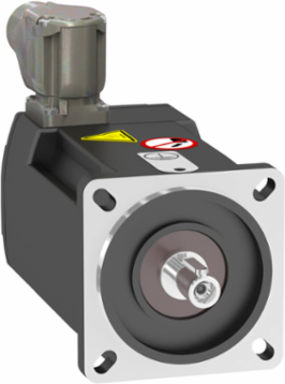

Schneider Electric BMP0701R3NA2A Synchronous Motor, 230 VAC, 0.37 kW, IP65, 3600 RPM

MPN: BMP0701R3NA2A
PPN: SCH-BMP0701R3NA2A

$1310.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This BMP synchronous motor has a power rating of 0.37kW and works at a rated supply voltage 230V. It is designed with latest magnetic materials and an optimized design, result in shorter length at a comparable torque. It has maximum mechanical speed of 3600 rpm and its protection index is IP65. It is compatible with Altivar 32 and Altivar machine ATV320 variable speed drives. It is also RoHS compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France

Physical Attributes

Key Width	4 mm
Shaft Length	23 mm

Motor Flange Size	70 mm

Complementary Attributes

Maximum Current Irms	5 A ATV32 0.37 kW 200 V single phase, 5 A ATV320 0.37 kW 200 V single phase
Minimum Operating Frequency	43 Hz ATV32 0.37 kW 200 V single phase, 43 Hz ATV320 0.37 kW 200 V single phase
Maximum Mechanical Speed	3600 rpm

Maximum Operating Frequency	300 Hz ATV32 0.37 kW 200 V single phase, 300 Hz ATV320 0.37 kW 200 V single phase
Maximum Axial Force Fa	0.2 x Fr
Maximum Radial Force Fr	660 N 1000 rpm520 N 2000 rpm460 N 3000 rpm410 N 4000 rpm

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Nominal Operating Frequency	250 Hz ATV32 0.37 kW 200 V single phase, 250 Hz ATV320 0.37 kW 200 V single phase
Nominal Torque	1.18 N.m ATV32 0.37 kW 200 V single phase, 1.18 N.m ATV320 0.37 kW 200 V single phase
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Advanced
Market Segmentation	Industrial
Centring Collar Diameter	60 mm
Device Short Name	BMP
Holding Brake	without
Mounting Support	international standard flange
Number Of Motor Stacks	1
Phase	single phase
Product Or Component Type	synchronous motor
Rotor Inertia	0.59 kg.cm²
Shaft End	keyed
Sustainable Packaging	No
Type Of Cooling	natural convection
Pep Code	ENVPEP111049EN
[Us] Rated Supply Voltage	230 V
Package Weight(Lbs)	2.038 kg
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Nominal Speed	3000 rpm ATV32 0.37 kW 200 V single phase, 3000 rpm ATV320 0.37 kW 200 V single phase
Stator Inductance	12.15 mH for q-axis winding 40 °C, 12.15 mH for d-axis winding 40 °C
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Motion - drive & motor
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	2
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Circle Diameter Of The Mounting Holes	75-82 mm
Electrical Connection	rotatable right-angled connector
Mounting Holes Diameter	5.5 mm
Number Of Motor Poles	5
Number Of Mounting Holes	4
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Shaft Diameter	11 mm
Stator Resistance	5.37 Ohm 40 °C
Torque Constant	0.81 N.m/A 40 °C
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length Total	122 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8501514040

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Environmental Disclosure	ENVPEP111049EN
Ip Degree Of Protection	IP65 standardIP67 with IP67 kit
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	variable speed drive ATV32 0.37 kW 200 V single phasevariable speed drive ATV320 0.37 kW 200...240 V single phase
Pep Code	ENVPEP111049EN
